Fostex RM-3DT Active Monitor Speaker w/ Dante
Model: RM-3DT
About: Fostex RM-3DT Active Monitor Speaker w/ Dante
Following the launch of 6301DT, a Dante compliant 6301N last year, new RM-3DT offering the uncompressed digital audio signal transfer developed by Audinate is now on the market.
Features:
- Accepts Balanced Analog Input and Dante® Input.
- Power saving design by the digital amplifier and switching power supply.

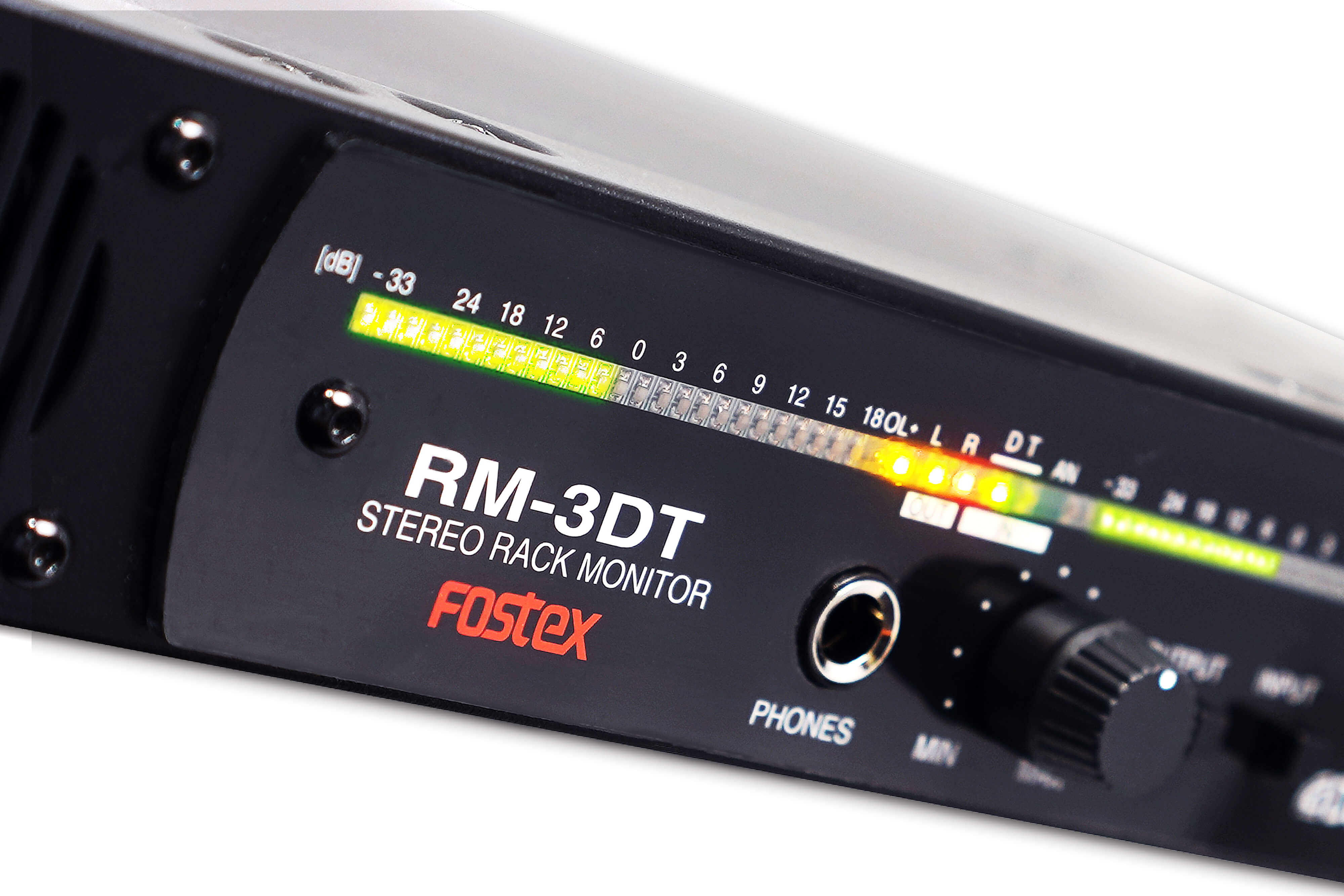

- 26-dot LED meter indicates either of VU, VU+PEAK, VU+PEAK HOLD, PEAK+PEAK HOLD.
- The display brightness can be adjusted in four levels.
- Outputs either or both of any 2-channel digital signals extracted from Dante® network signals.
- Supported sampling frequencies: 44.1/48/88.2/96 kHz.
- Physical dimensions are identical to the conventional RM-3 for easy replacement.
Specifications
SPEAKER SECTION
- Unit: 110 x 40mm rectangle cone type
- Impedance: 8 ohm
- Sound Pressure Level: 84dB / W (1m)
- Frequency response: 200 Hz – 20k Hz
AMPLIFIER SECTION
- Rated output: 10W x 2
- Residual Noise: -50dBV or less (DIN AUDIO)
- Distortion (T.H.D.): less than 0.1%
INPUTS

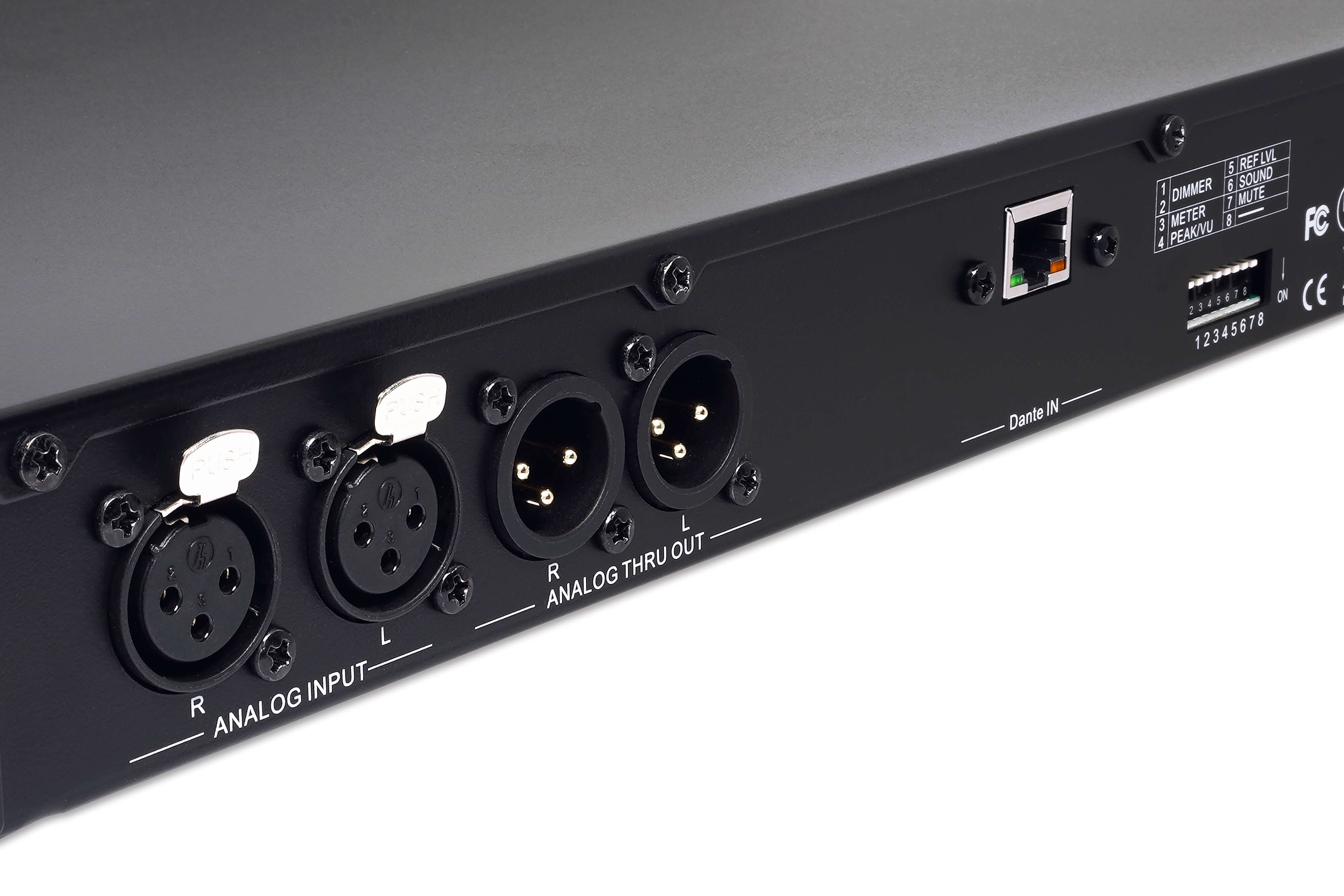

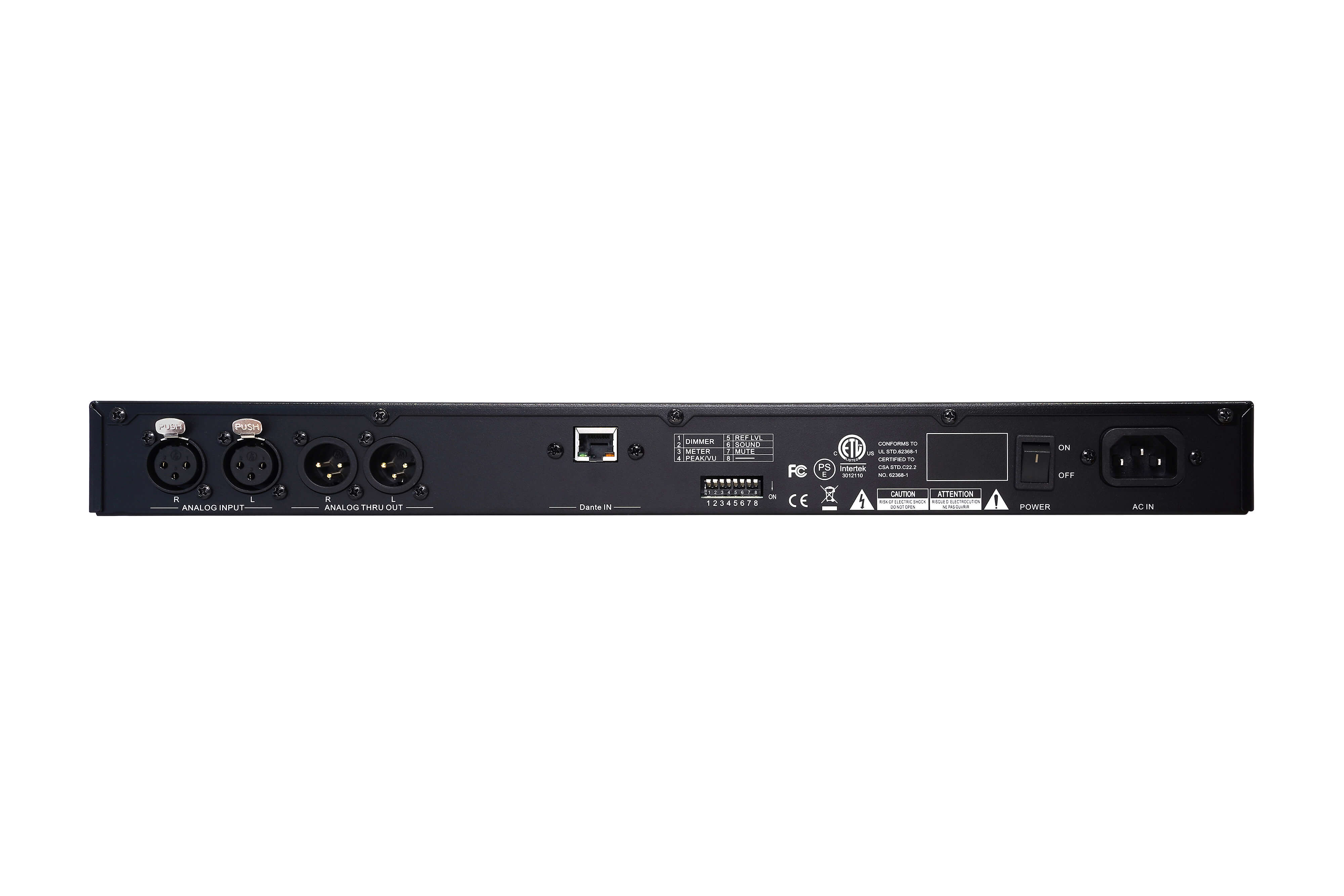

- Connector: Dante Input (RJ45), XLR-3-31 (balanced)
- Analog Input Level: +4/0 dBu (balanced)
- Analog Input Impedance: 10k ohm or more
THROUGH OUT
- Connector: XLR-3-32 (balanced)
PHONES
- Connector: 1/4” Stereo Phone
- Input Impedance: 16 ohm or higher
- Maximum Output Level: 20mW + 20mW (32 ohm, 1kHz)
LEVEL METER
- Display: 26 dot LED x 2
- Reference Level: XLR: +4/0 dBu (analog)
GENERAL
- Dimensions: 482 (W) x 44 (H) x 284 (D) mm (incl. protruded parts)
- Weight: approx. 3.5kg
- Power Requirement: AC 100 – 240V (50/60Hz)
- Power Consumption: 10W
UPC: 636827308977
Reviews: Fostex RM-3DT Active Monitor Speaker w/ Dante
There are currently no product reviews.
Warranty: Fostex RM-3DT Active Monitor Speaker w/ Dante
AVShop.ca Warranty:
30 Days
Manufacturer's Warranty:
One Year, parts and labour against manufacturer defects
Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
