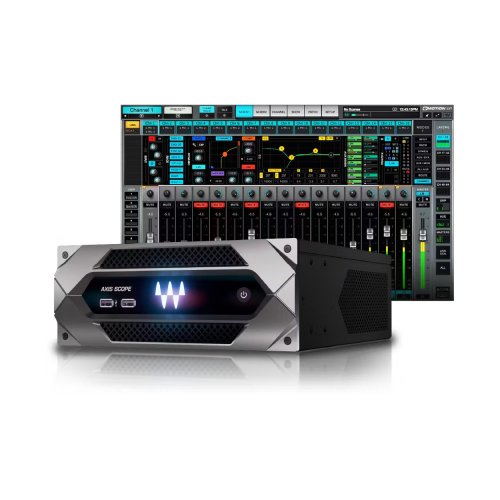

Waves eMotion LV1 64-Channel Mixer Software + Axis Scope Computer
Model: CMBAXISLV64
About: Waves eMotion LV1 64-Channel Mixer Software + Axis Scope Computer
Mix Studio-Grade Live Sound on a Waves-Optimized System with eMotion LV1 64-channel live mixer software + Axis Scope computer optimized for live sound.
This live mixing system includes 64 stereo/mono channels of the superior-sounding eMotion LV1 mixer software, plus an Axis Scope computer optimized for running the LV1 software.
To complete your LV1 mixing system, connect your Axis Scope running the LV1 to aSoundGrid server and a SoundGrid-compatible audio interface (both sold separately).
This combo includes 1 full year of the Waves Essential plugin subscription, which includes 110 industry-leading plugins for your live mix. (Annual subscription, automatically renewed.)
- 32-bit floating-point mix engine, with 64 stereo/mono channels
- Axis Scope computer runs eMotion LV1 mixer and SoundGrid plugins
- Includes 1 year of Waves Essential plugin subscription (110 plugins)
- Each LV1 channel can host up to 8 SoundGrid-compatible plugins
- Axis Scope: i5 8500 CPU, 16 GB RAM
- Run SoundGrid plugins with under 0.8 milliseconds of latency
- Axis Scope is housed in a rugged, 2U half-rack enclosure
- Includes 4 Waves eMo SoundGrid-compatible plugins
- 8-port network switch with compatible cables included
eMotion LV1 Live Mixer 64ch Software License - Step Up to the Next Level of Live Sound​
Bring pristine, industry-acclaimed sound quality to any show, venue, or streaming event. With up to 64 stereo channels of unbeatable audio, full Waves plugin integration, and a customizable design to accommodate your personal workflow, eMotion LV1 addresses any live sound challenge.
Seamless integration with Waves’ 200+ plugins brings the award-winning signal processors used in studios around the world to live sound—for unlimited creative possibilities and precision control.
- 32-bit, double-precision audio engine for headroom and clarity
- Run eight SoundGrid-compatible plugins directly on each channel
- Up to 64 stereo/mono input channels, 44 bus/return channels, 8 matrixes
- Live-optimized Waves eMo plugins provide channel strip processing
- Create custom layers for super-quick, personalized workflow
- Supports 44.1 to 96 kHz sample rates
- Connect & share up to 16 stage boxes, converters & computers
- Compatible with industry-standard controllers, including Waves FIT
- Windows and Mac 64 bit-compatible
- Smooth integration with Dugan Speech automixer plugin
- Practically unlimited processing power using multiple servers
- Mobile/tablet remote control from FOH, stage, or anywhere in the venue
Axis Scope - Optimize Your Live Sound System: Custom Computer Built for Maximum Performance
The Waves Axis Scope computer is built from the ground up to deliver maximum stability and performance in Waves SoundGrid systems. Thanks to careful component selection and extensive, rigorous testing, Axis Scope is fully optimized to match the needs of sound engineers using Waves software applications.
Featuring sleek industrial design, elegance, and rugged durability, Axis Scope becomes the “brain” of a complete SoundGrid system that delivers world-class sound reliably—anywhere, anytime.
- Compact, 2U half-rack size with optional rack ears or shelf
- Custom-built computer, optimized for running Waves applications
- 16 GB DDR4 RAM, 256 GB high-speed internal SSD
- 10th-generation Intel i5-10600 6-core/12-thread processor
- 6 USB2/USB3 ports, HDMI, display port, external HDMI dongle port
- Pre-loaded with Microsoft Windows 10
- Interfaces seamlessly with SoundGrid I/O devices and servers
- 1 SoundGrid port (EtherCon connector), 1 Ethernet port (RJ45)
Specifications
- CPU: Intel i5-10600
- RAM: 16 GB
- Motherboard: Gigabyte GA-IMB410N
- LAN Card: Intel I211/I-219
- Dimensions
- Length: 22 cm / 8.7 in
- Height: 8.6 cm / 3.4 in
- Depth: 28.4 cm / 11.2 in
- Device Weight: 3.4 kg / 7.5 lbs
- Power Consumption: 110/220V 65 W
- Operating Environment temperature range: 50° to 95°F / 10° to 35°C
- Max Environment temperature: 104°F / 40°C
- USB Ports
- 2 X Front panel USB 2.0 ports
- 4 X Back panel USB 3.0 ports
What's Included
- Axis Scope
- NETGEAR GS108 V4 8-Port Switch
- eMotion LV1 Live Mixer – Software Licenses
- eMo D5 Dynamics
- eMo F2 Filter
- eMo Generator
- eMo Q4 Equalizer
