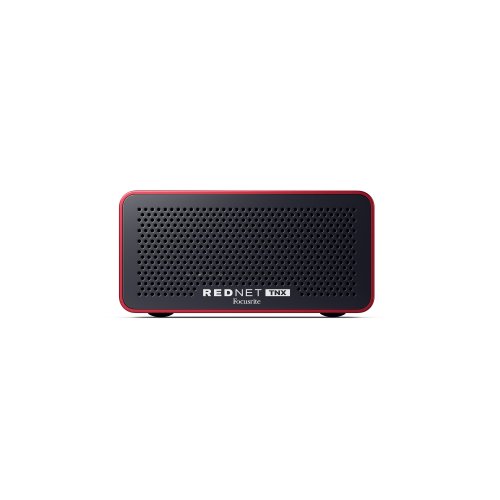

Focusrite RedNet TNX 128x128 Low-Latency Thunderbolt and Dante Interface

About: Focusrite RedNet TNX 128x128 Low-Latency Thunderbolt and Dante Interface

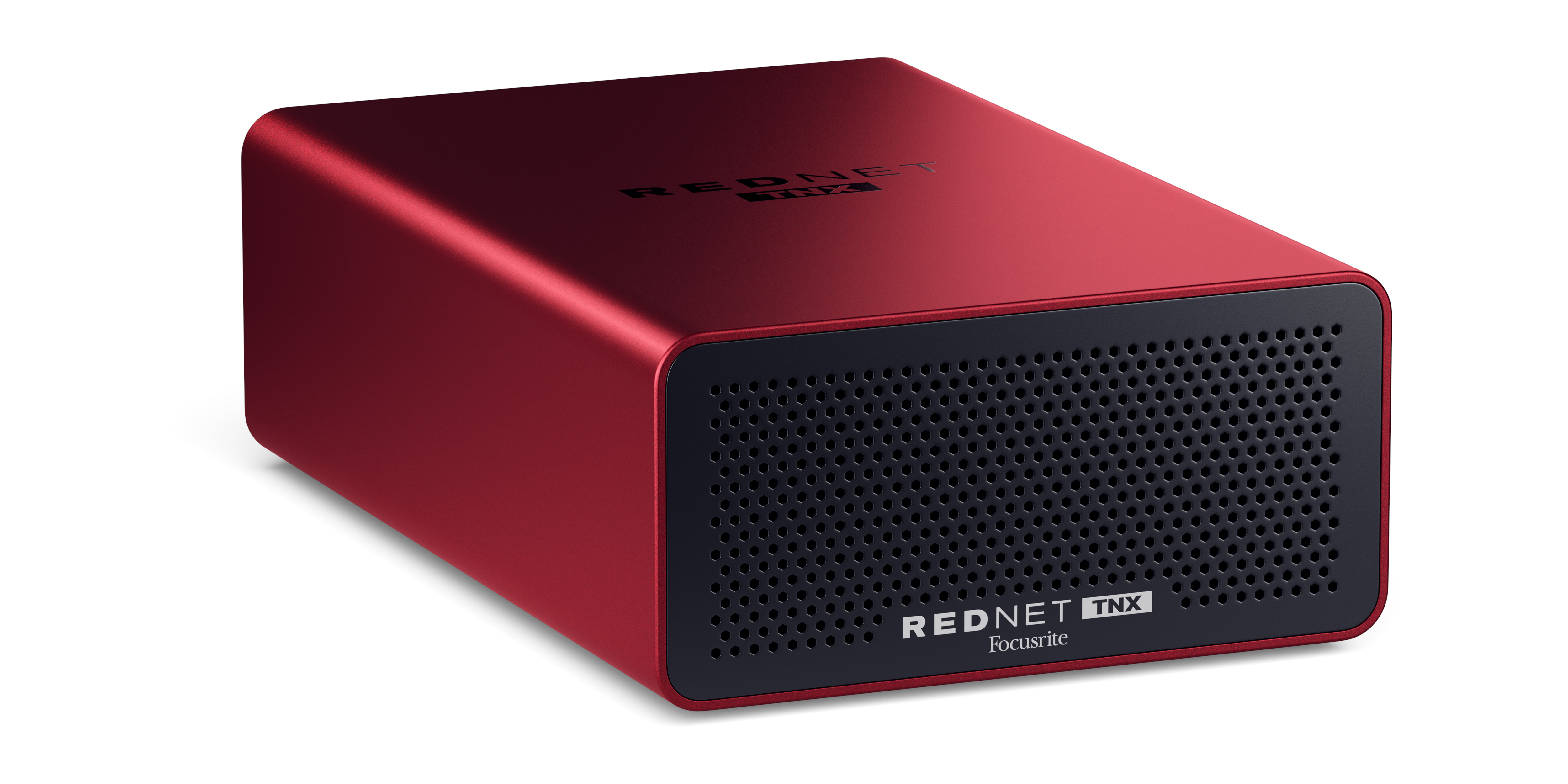

RedNet TNX is a portable Dante interface that delivers high-resolution, ultra-low latency Dante audio with 128x128 channels at 24-bit/192kHz straight out of the box. With Dante Ready, you can expand your system to 256x256 channels at 24-bit/96kHz — all via a single Thunderbolt connection for powerful and versatile audio workflows.

• Upgradable to 256x256 channels at 96kHz
• 2x Thunderbolt 3 ports
• Windows and macOS compatible
• AES67 and SMPTE ST 2110 compliant

Powerful, flexible audio workflows

Tap into the power of high-channel-count Dante workflows with 128x128 channels at up to 192 kHz with ultra-low latency — all via a single Thunderbolt connection. RedNet TNX brings simplicity and flexibility to large recording, post-production, and broadcast setups.

Room to expand

RedNet TNX offers expandable connectivity with an optional upgrade to 256x256 audio channels at 24bit/96kHz with Dante Ready.

Ready for recording

For commercial recording studios and music production facilities, RedNet TNX delivers performance, flexibility, and scalability, with up to 256x256 channels of uncompressed, high-resolution audio at ultra-low latency.

Effortless Setup

With RedNet TNX, connect to any Windows or Mac system with a Thunderbolt port, and you're set. Network connection is just as straightforward, with an integrated network interface providing network control through a single cable.

Perfect for post

For post-production professionals working in Dolby Atmos, RedNet TNX offers the ability to integrate high-channel-count Dante audio seamlessly with the Dolby Renderer.

Built for broadcast

With support for AES67 and Dante Domain Manager, plus SMPTE ST 2110 compliance, RedNet TNX is perfect for broadcast deployment — and portable enough to use on location.

Flexibility meets reliability

Two Ethernet RJ-45 connections offer both switched and redundant modes, giving flexibility of connectivity as well as the option to have a secondary network in mission-critical situations.

Simple, integrated network control

RedNet TNX works with RedNet Control, which allows control and monitoring of all RedNet devices on your network via a single application.

Integrate within your setup

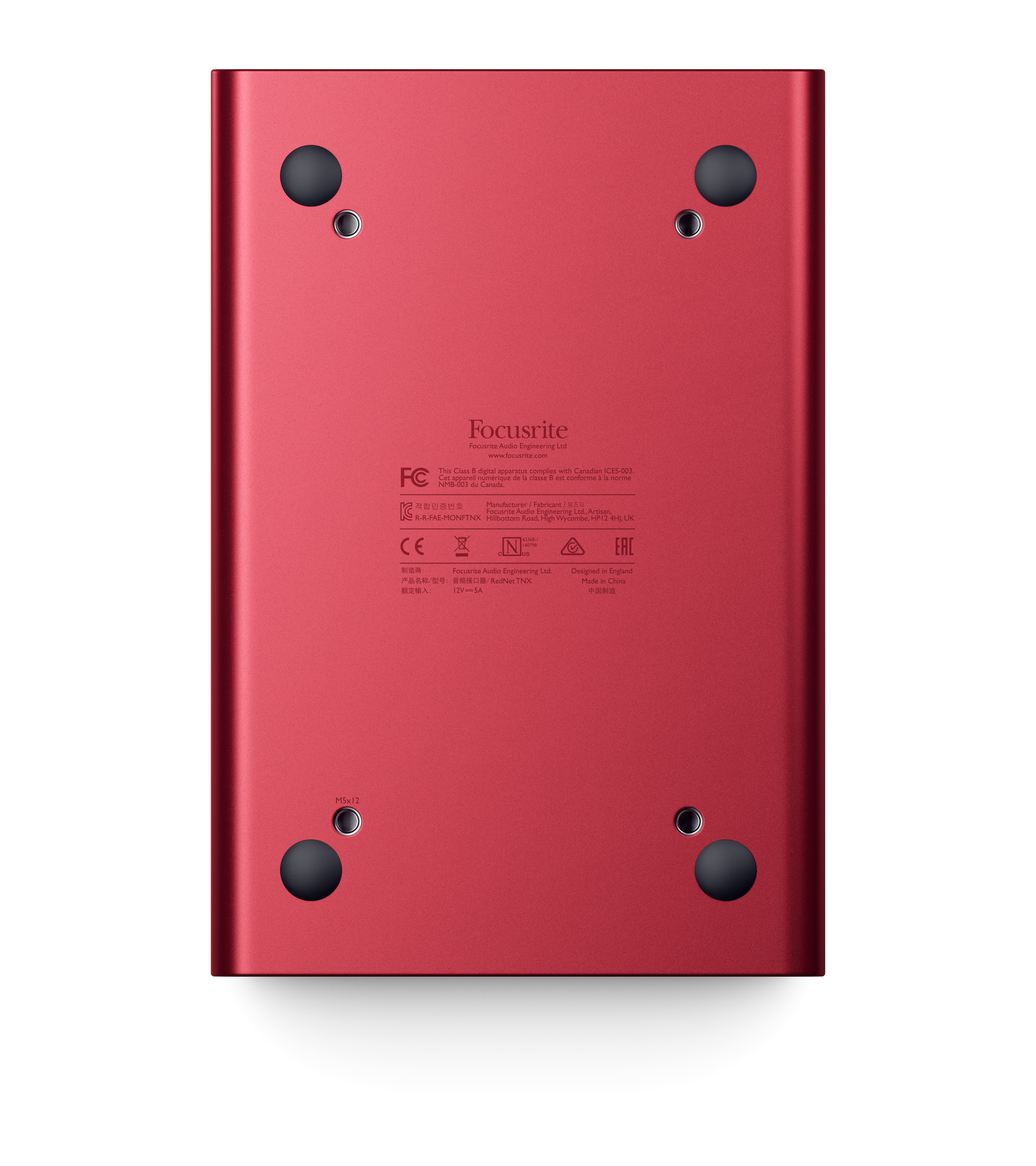

Each of the two Thunderbolt ports provides 15W of power and allows you to run multiple Thunderbolt devices in series. Secure RedNet TNX to a rack shelf using the exposed M5 x 12mm screw threads located underneath.

Backed by Focusrite

RedNet TNX is future-proof and designed for reliability. It’s also backed by Focusrite’s three-year warranty and award-winning 24/7/365 technical support for added peace of mind.

Specifications

• System Requirements
  • Computer: Apple Mac/Windows system running supported OS
  • Computer with Thunderbolt port
  • Other: Internet connection for downloading and installing software and driver
• Simultaneous Inputs & Outputs
  • 128x128 (all sample rates)
  • 256x256 (up to 96kHz) with a paid upgrade
• Digital Performance
  • Supported Sample Rates: 44.1 / 48 / 88.2 / 96 / 176.4 / 192 kHz (-4% / -0.1% / +0.1% / +4.167%) at 24-bit
• Dante Connectivity
  • 2 x Ethernet standard RJ45 connectors (compatible with Cat 5e and above)
• Driver Compatibility
  • Multi-client ASIO and WDM (Windows)
  • CoreAudio (Mac)

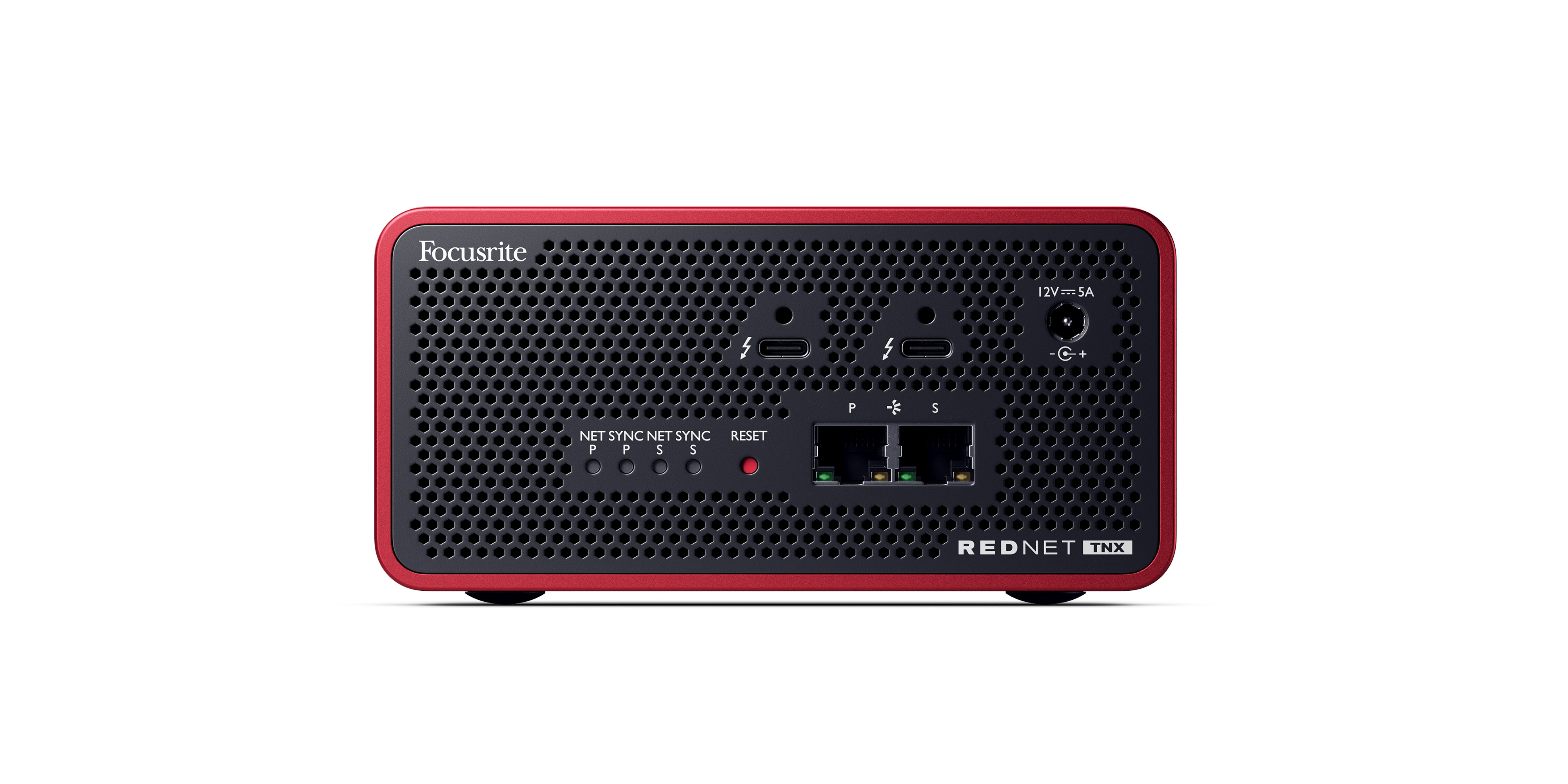

• Rear Panel
  • 2x Thunderbolt 3 ports (Provide 15W of power)
  • 2x Sonnet ThunderLok
  • 2x Network Active LED indicators (Primary/Secondary)
  • 2x Network Lock LED indicators (Primary/Secondary)
  • 1x DC power inlet
  • 1x Factory Reset button
• Heat Performance
  • Max ambient temperature: 50 degrees Celsius/122 degrees Fahrenheit
• Miscellaneous
  • Exposed threads for rack shelf/cradle mounting
• Power requirements
  • Powered by external DC power supply
• Dimensions (WxDxH): 5.67 x 8.36 x 2.82 inch (144 x 212.4 x 71.6mm)
• Weight: 3.29 lbs (1.49kg)

​What's in the Box

• RedNet TNX unit
• 2m Thunderbolt 3 cable
• 2m cat6A Ethernet cable
• External DC power supply and cable
• Focusrite Pro Important Information Guide
• Safety Information Sheet
