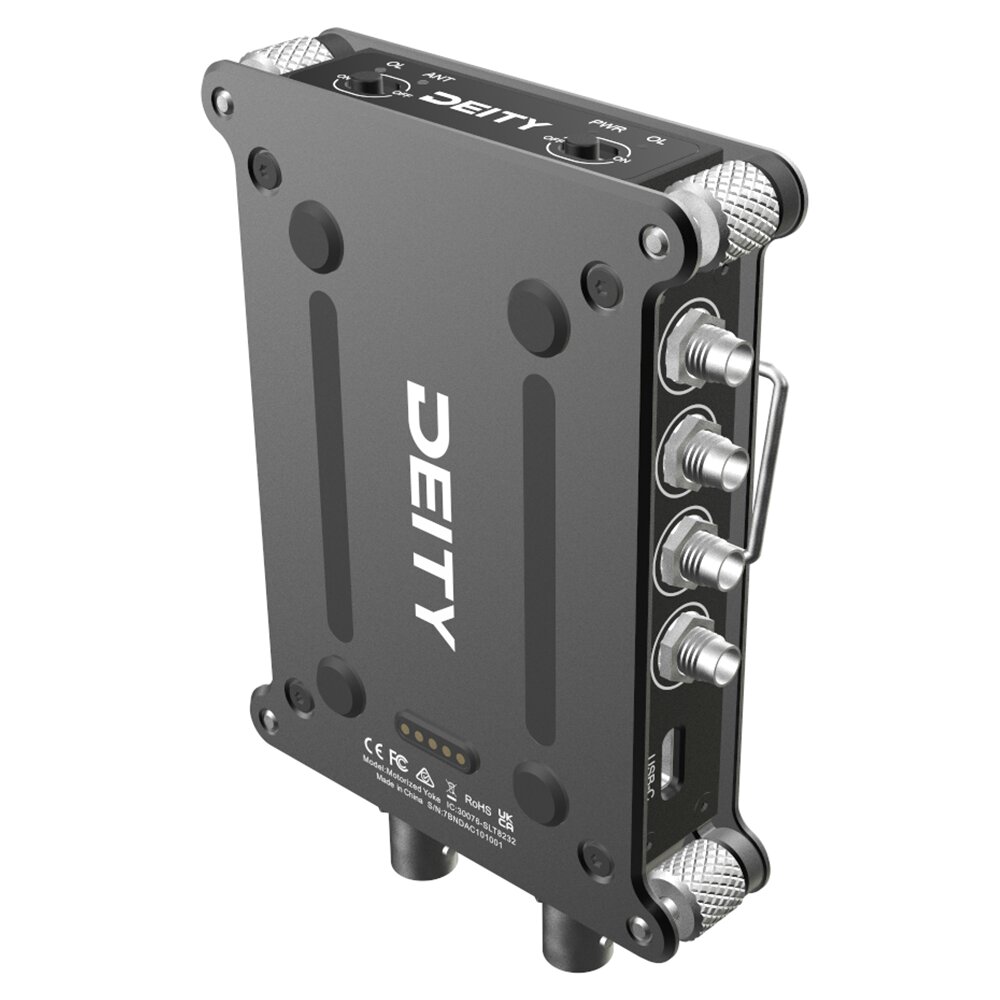

Deity Microphones SRD-Mini Portable 4-Channel Antenna-Distribution System
Model: DTR0289D51
About: Deity Microphones SRD-Mini Portable 4-Channel Antenna-Distribution System
Introducing the SRD-Mini, the ultimate portable RF distributor tailored for location sound mixers operating out of a sound bag setup. This cutting-edge device ensures seamless connectivity and superior performance in demanding field conditions.
- Active Splitter; Corrects for Line Loss

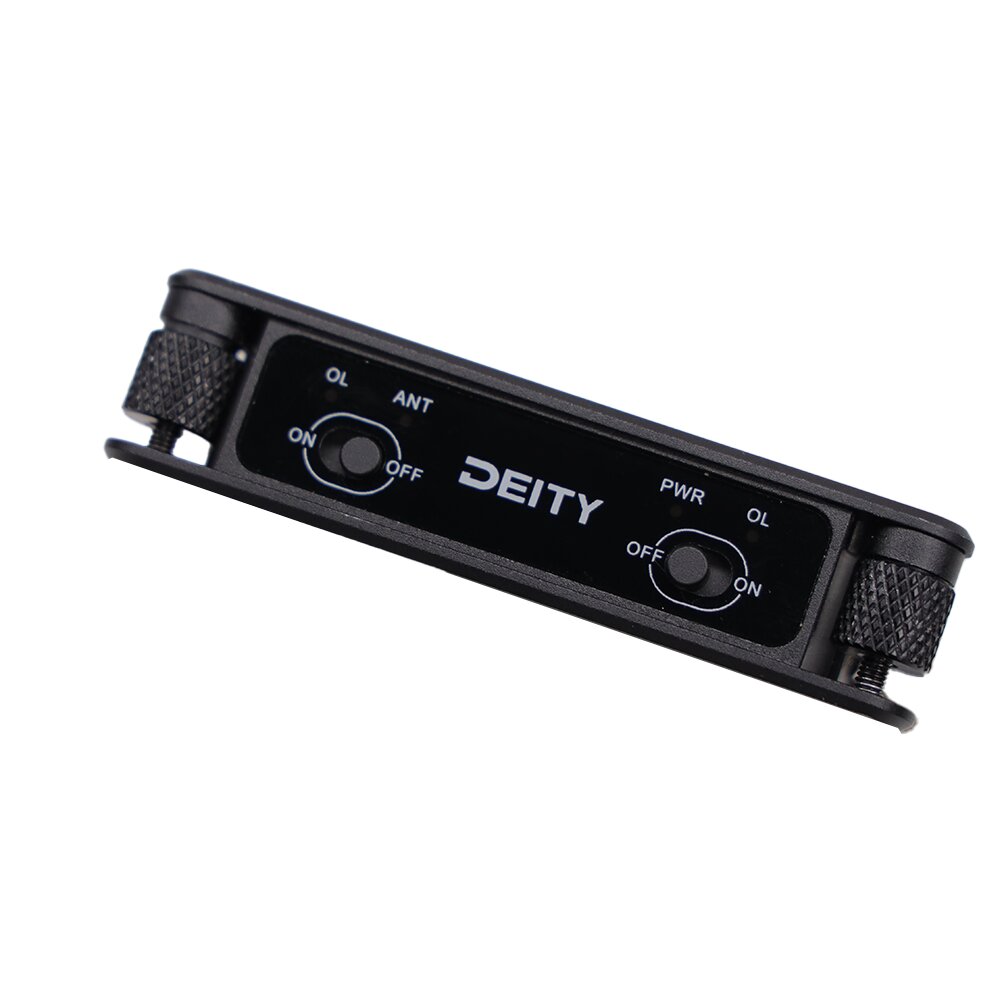

- RF Overload Protection; Warning LED lights
- 2x8 Splitter; Supports up to 16 channels of bag wireless
- Ultra Wide Spectrum; 470 ~ 960 MHz
- Multiple Power Inputs
The SRD-Mini features an active splitter that corrects for line loss, ensuring your RF signals remain strong. With built-in RF overload protection and warning LED lights, you’ll always be alerted to any potential signal issues, keeping your setup safe and efficient.
The SRD-Mini's 2x8 splitter design supports up to +16 wireless channels and provides exceptional flexibility for complex sound setups. Its ultra-wide spectrum covers a frequency range of 470 to 960 MHz, guaranteeing compatibility with a wide array of wireless brands. Whether you’re on a film set, a live event, or any location requiring pristine wireless signal quality, the SRD-Mini delivers.
Furthermore, the SRD-Mini offers multiple power input options, including a Hirose-style 4-pin power input and USB-C. This ensures you can stay powered up no matter the circumstances, making it a versatile addition to your wireless equipment.
Compact, reliable, and packed with features to enhance your wireless ecosystem experience, the SRD-Mini is your go-to solution in the field.
Industry Standard Connectors
- The SRD-Mini utilizes standard connectors, ensuring compatibility with a wide range of equipment.

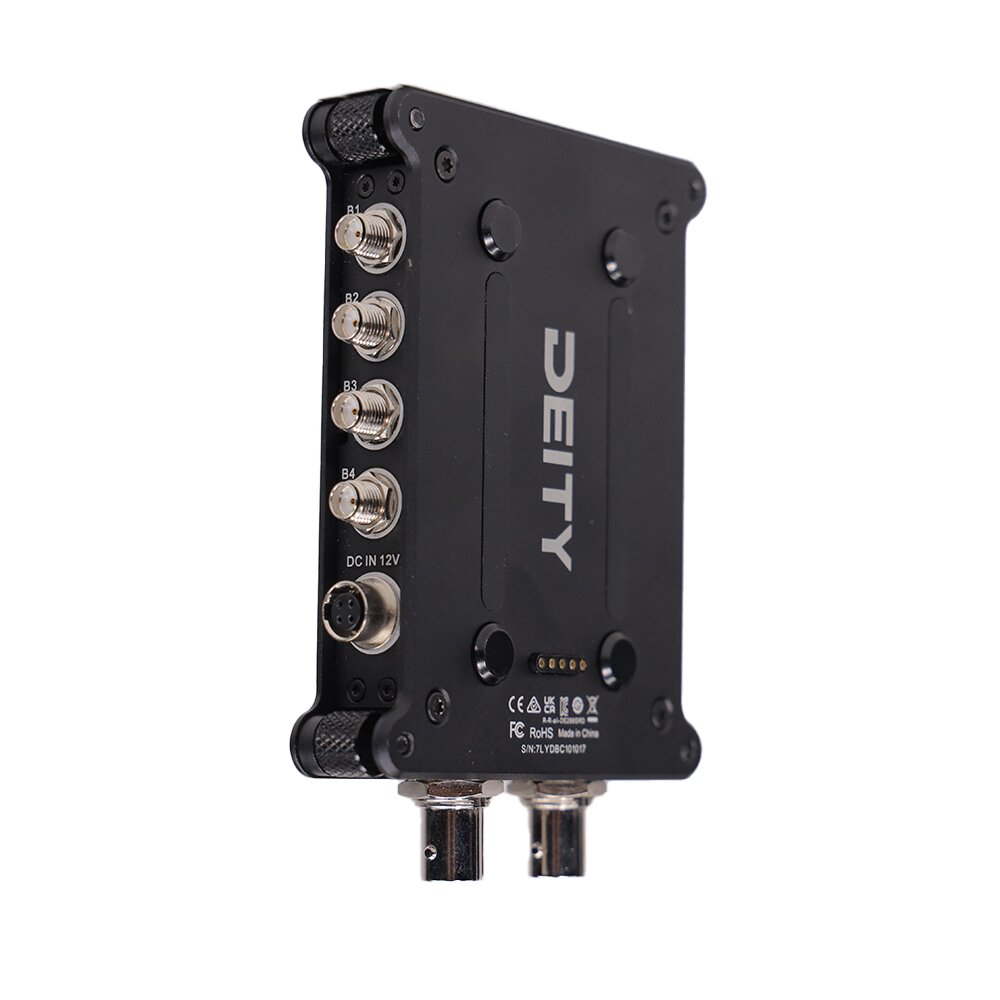

- Two 50-ohm BNC ports act as the A/B inputs while eight 50-ohm SMA outputs split the incoming signal ( 1 A x 4 A / 1 B x 4 B).
Wide Frequency Range
- The SRD-Mini operates in the 470 MHz to 1 GHz range, allowing it to operate anywhere in the world and with nearly any UHF wireless microphone system you may already own.
Multiple Power Options

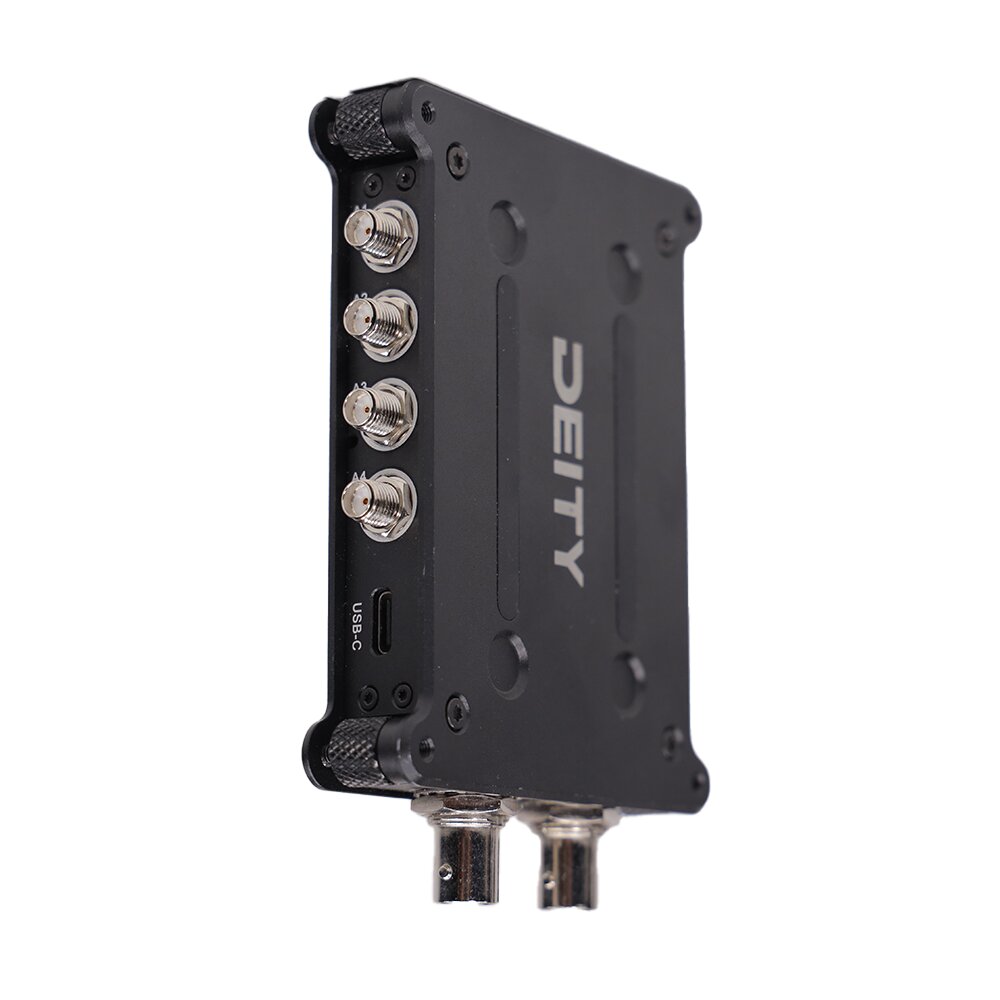

- The SRD-Mini has traditional power inputs like a 12-16.8 VDC 4-pin Hirose-compatible connector and a 5 VDC USB-C connector.
- For a cable-less power solution, the unit can also be powered from the SPD-Mini power distributor (available separately) via its pogo pins.
Specifications
- Frequency Range: 470 MHz ~ 1 GHz
- Gain: +3 dB ~ +9 dB
- Port Isolation: >20 dB
- Input Impedance: 50Ω
- Output Impedance: 50Ω
- Front-End Max Input Signal: +13 dBm
- Overload Indication: 0 dBm
- Noise Figure: < 1.5 dB
- Working Voltage
- USB-C: 5V DC
- HRS4: 12-16.8V
- Operating Current Consumption: < 160 mA (HRS4 Input)
- Material: Aluminum Alloy
- RF Input Port: BNC
- RF Output Port: SMA
- Size: 115.5 x 78 x 20.8 mm
- Weight: 185.5 g
What's in the Box
- SRD-Mini
- Warranty QR Code
- Manual QR Code
- Deity Stickers
UPC: 6971840000000
