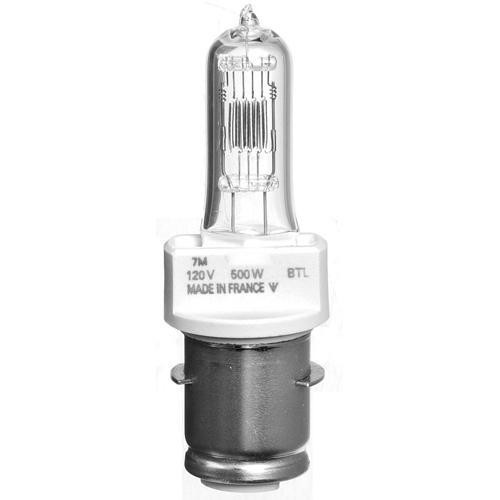

Osram BTL 500W 120V Lamp

Model: OSR 54685

Osram BTL 500W 120V Lamp
  • Free Shipping on orders over $199
  •  In Stock - Ship or Pick-up
  • Not yet reviewed



About: Osram BTL 500W 120V Lamp

500 watt, tungsten halogen, medium to high voltage, single-ended

  • Abbrev. With Packaging Info. BTL 120V 12/CS 1/SKU
  • ANSI Code BTL
  • Application Stage & Studio
  • Average Rated Life (hr) 750
  • Base P28s Medium Prefocus
  • Bulb T6
  • Class C (gas)
  • Color Rendering Index (CRI) 100
  • Color Temperature (K) 3050
  • Diameter d (in) 0.000
  • Diameter d (mm) 0.00
  • Distance a (in) 2.168
  • Distance a (mm) 55.6
  • Filament C-13D
  • Lamp Finish Clear
  • Length l (in) 4.953
  • Length l (mm) 127
  • Length l max. (in) 4.953
  • Length l max. (mm) 127
  • Light Center Length - LCL (in) 2.168
  • Light Center Length - LCL (mm) 55.6
  • Luminous Flux (lm) 11000
  • Maximum Overall Length - MOL (in) 4.213
  • Maximum Overall Length - MOL (mm) 107
  • Nominal Voltage (V) 120.00
  • Nominal Wattage (W) 500.00
  • Operating Position s 90
  • Reflector Coating 0.00
  • Type of Current AC

UPC: 4062172147095

Reviews: Osram BTL 500W 120V Lamp

There are currently no product reviews.


Warranty: Osram BTL 500W 120V Lamp

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

LED Fixtures: 5 Years

Manufacturer's Warranty will cover parts, labour and return shipping back to you once repaired. Shipping into the service centre is not covered
