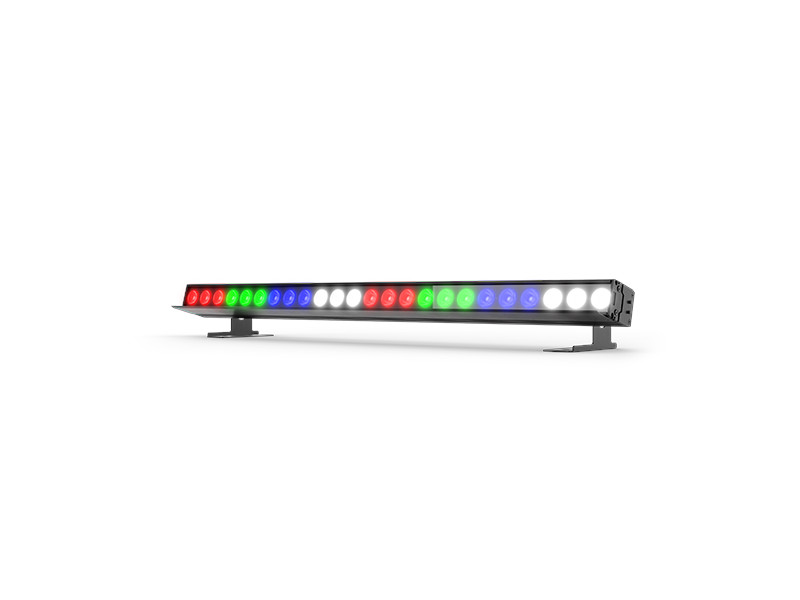

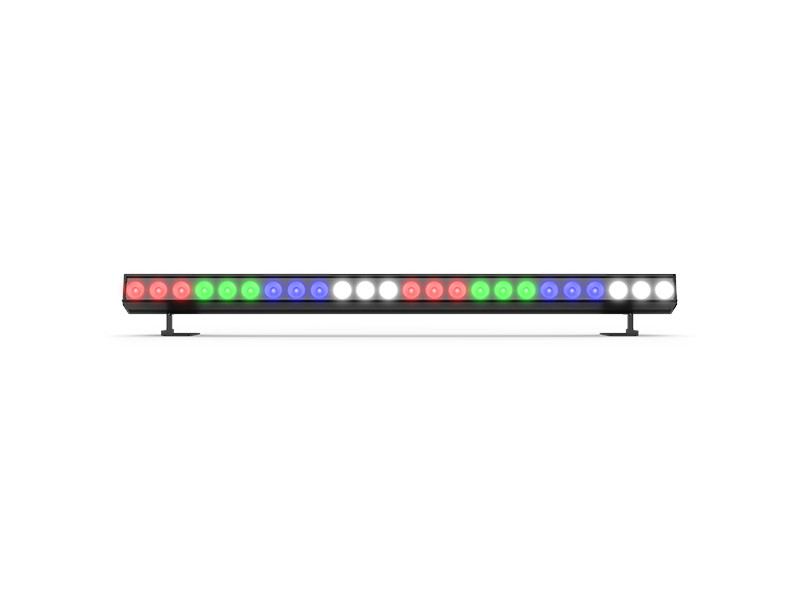

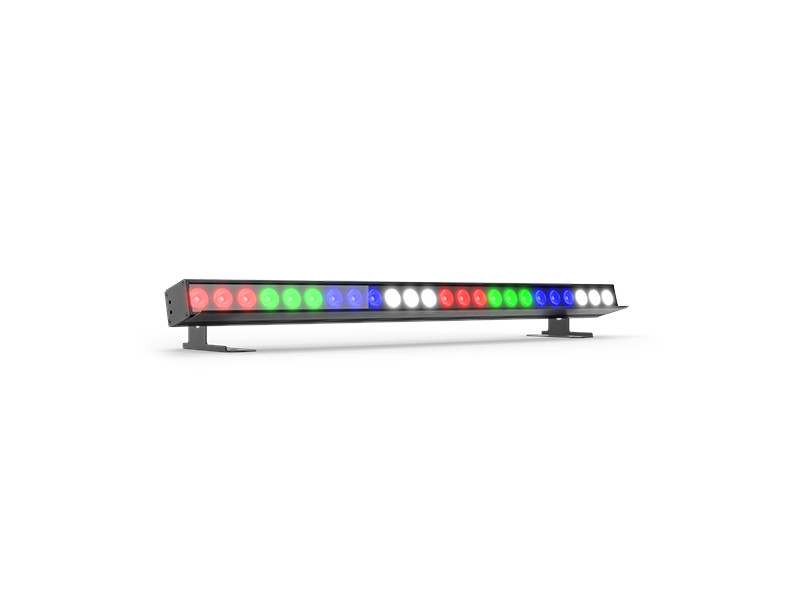

Chauvet DJ EVE B-160Q Full-Colour LED Batten
Model: EVE-B160Q
About: Chauvet DJ EVE B-160Q Full-Colour LED Batten
Put color in motion across 8 zones of control, pick the perfect warm or cool white from color temperature presets, or mix custom colors with the versatile EVE B-160Q full-color RGBW LED batten designed to consistently match the colors of the EVE range of fresnels, ellipsoidals and PARs.
- Full-color linear batten designed for mobile and installation applications
- Up to 8 controllable zones allow for dynamic chase effects
- Pre-set color temperature ranges eliminate the need for manual color blending
- Flicker-free operation suitable for on-camera use
- D-Fi USB compatibility for wireless master/slave or DMX control

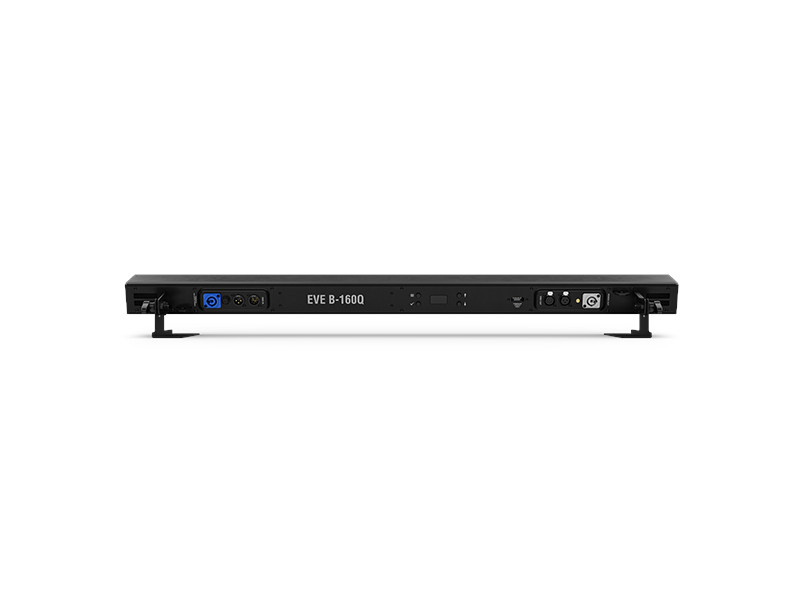

- PowerCON®-compatible power input/output connections for power linking
Specifications
- DMX Channels: 3, 4, 11, or 39
- DMX Connectors: 3- and 5-pin XLR
- Light Source: 24 LEDs (quad-color RGBW) 6.5W, (3.2A) 50,000 hours life expectancy
- Strobe Rate: 0 to 20 Hz
- Beam Angle: 15°
- Field Angle: 30°
- Illuminance: 8,300 lux @ 2 m
- Lumens: 3,909
- Power Linking: 7 units @ 120 V; 11 units @ 230 V
- Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
- Power and Current
- 105 W, 1.6 A @ 120 V, 60 Hz
- 102 W, 1.0 A @ 230 V, 50 Hz
- Beam Angle (w/ filter): 24°
- Field Angle (w/ filter): 52°
- Cable Length: 5 ft (1.524 m)
- Approvals: CE, MET, RoHS
- Size: 39.4 x 5.9 x 7.6 in (1000 x 151 x 194 mm)
- Weight: 10.4 lb (4.7 kg)
What's in the Box
- EVE B-160Q
- Power cord
- Quick Reference Guide
UPC: 781462230722
