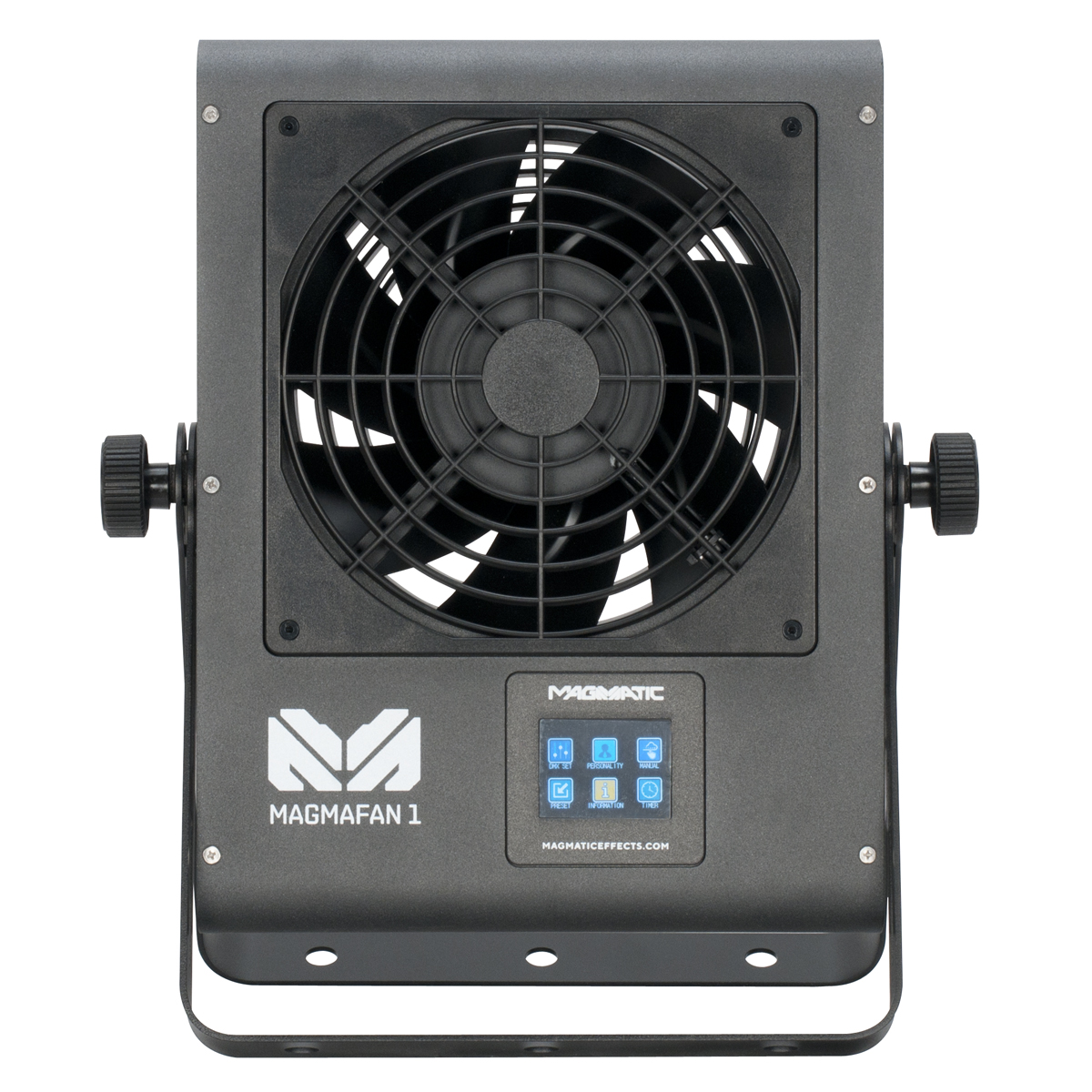

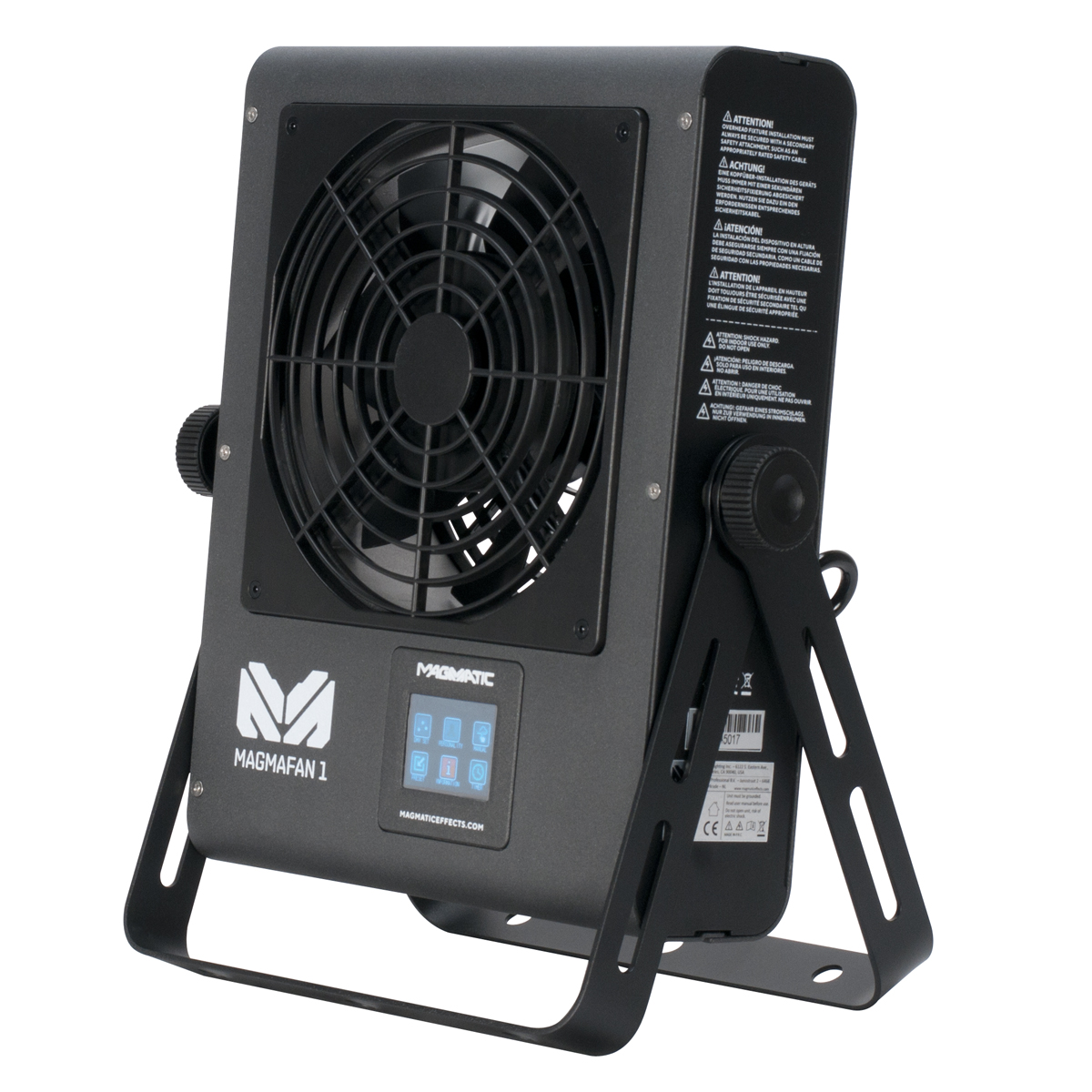

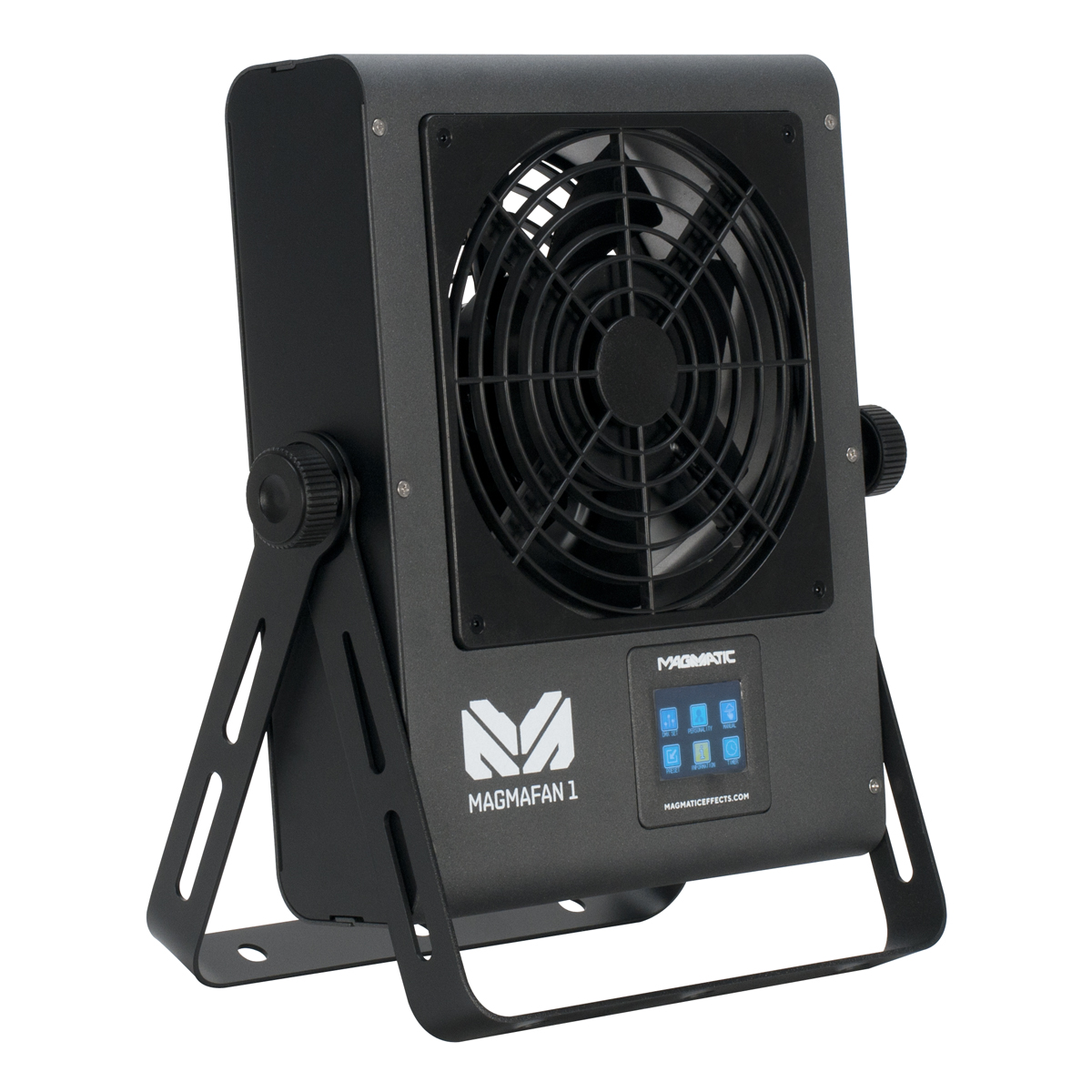

Magmatic MAGMAFAN 1 100W Variable Speed Atmospheric Fan

About: Magmatic MAGMAFAN 1 100W Variable Speed Atmospheric Fan

MAGMAFAN 1 is a compact all-purpose stage fan that features multiple control options, linear output control, low power consumption, adjustable blowing directions, and durable metal housing.

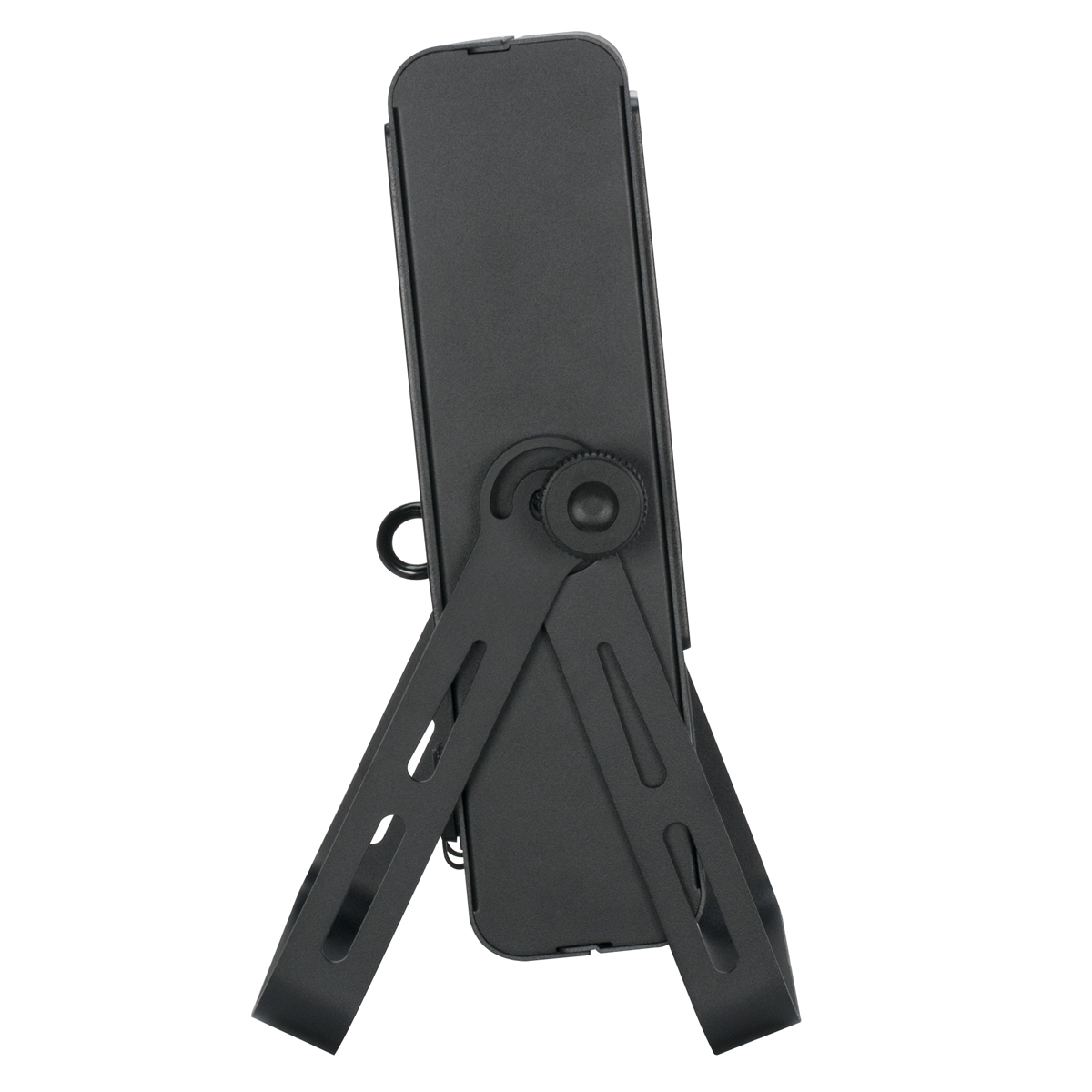

Low power consumption is only 80W, allowing you to put on the same circuit as your fog machine. The adjustable mounting/floor bracket included enables you to adjust the fan output 90 degrees. Easy to use onboard LCD touch screen control panel, intuitive DMX-512, and RDM control. Its durable aluminum housing design allows easy carry and storage, with optional wired and wireless remote control.

• Intuitive DMX-512 and RDM control
• Linear speed control
• 80W, low power consumption
• LCD touch screen control panel
• Compact durable metal housing

Specifications

• PERFORMANCE
  • Rated Power: 165W
  • Max. fan volume: (17m3/min 600CFM (US) - 15m3/min 530CFM (EU)
  • Fan angle: 0-360°
  • Fan speed range: 750-2800rpm (US) - 750-2550rpm (EU)
• CONSTRUCTION
  • Durable aluminum housing
  • Compact lightweight mobile design
• CONTROL
  • 3 DMX Channel Modes (1 / 2 / 4)
  • Onboard LCD Touch Control Panel
  • DMX-512 and RDM Protocol Support
  • Optional MAGFLY Wireless DMX Transceiver
  • Optional MAGRF Wireless and Wired Remotes

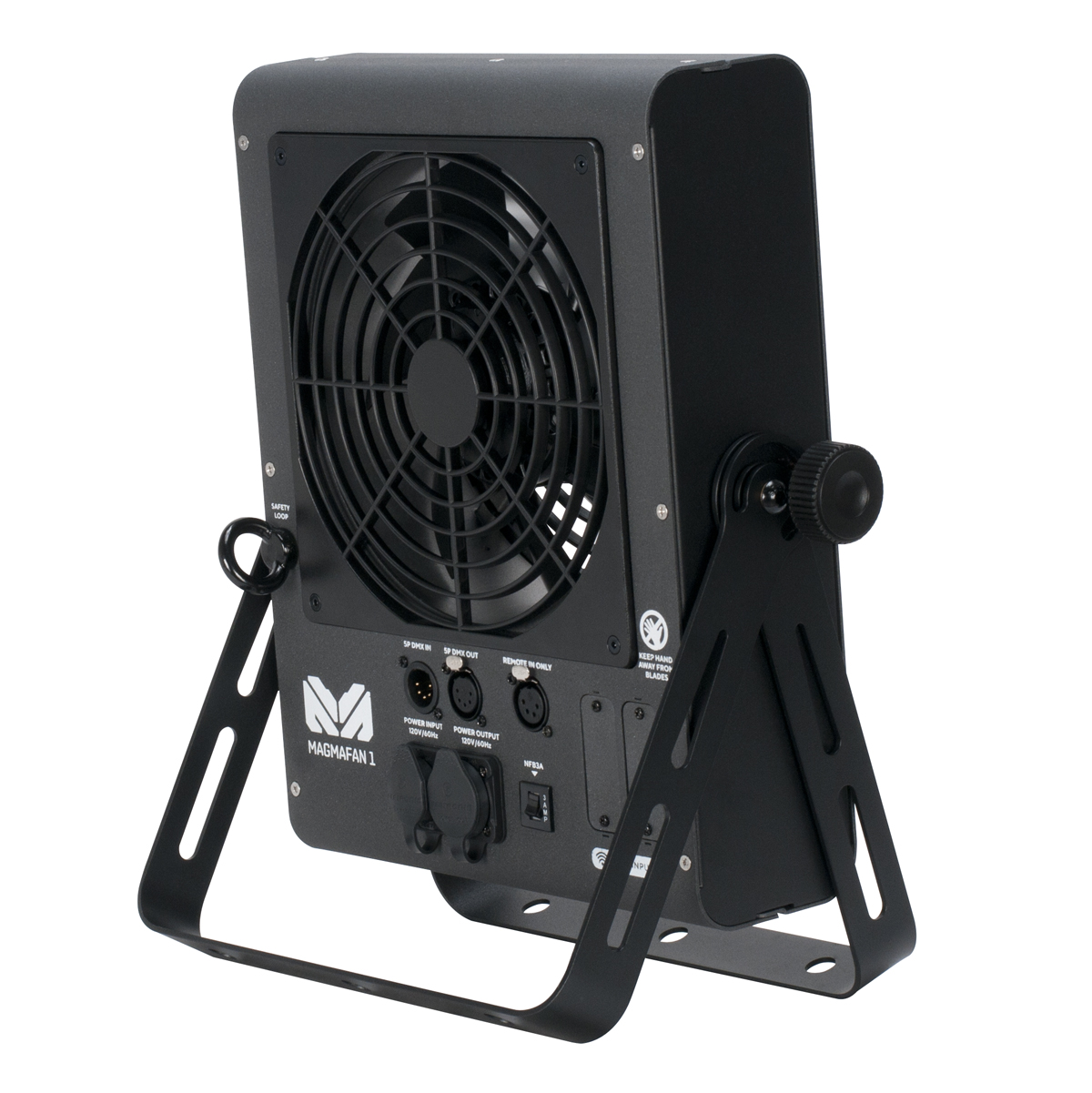

• CONNECTIONS
  • Locking 5pin XLR Connector In/Out
  • IP65 Locking Power Connector In
  • With Wired Digital Communication Network
• ​ELECTRICAL
  • US Version: 120VAC 60Hz, Europe Version: 230VAC/240VAC 50Hz
  • 3A (NFB US Version)
  • 2A (NFB EU Version)
  • Max Power Consumption: 165W
• THERMAL
  • Maximum Ambient Temperature (Ta max) 104°F (40°C)
  • Exterior Surface Temperature, Steady State: 122°F (50°C)
• OPTIONAL ACCESSORIES
  • MagFly
  • MagRF
• APPROVALS / RATINGS
  • CE | cETLus | IPX4 | UKCA
• SIZE / WEIGHT
  • Length: 13.2 in. (335mm)
  • Width: 4.9 in. (125mm)
  • Height: 15.6 in. (395mm)
  • Weight: 15 lbs. (6.8kg)
