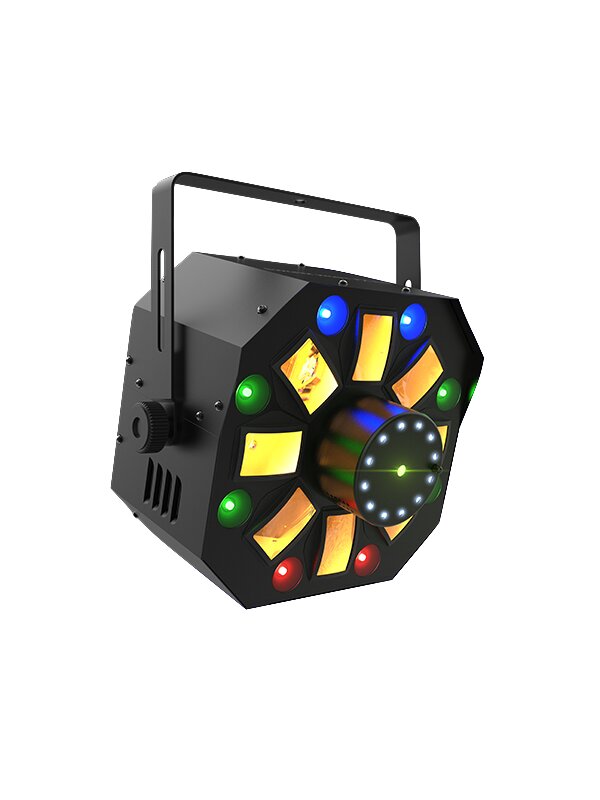

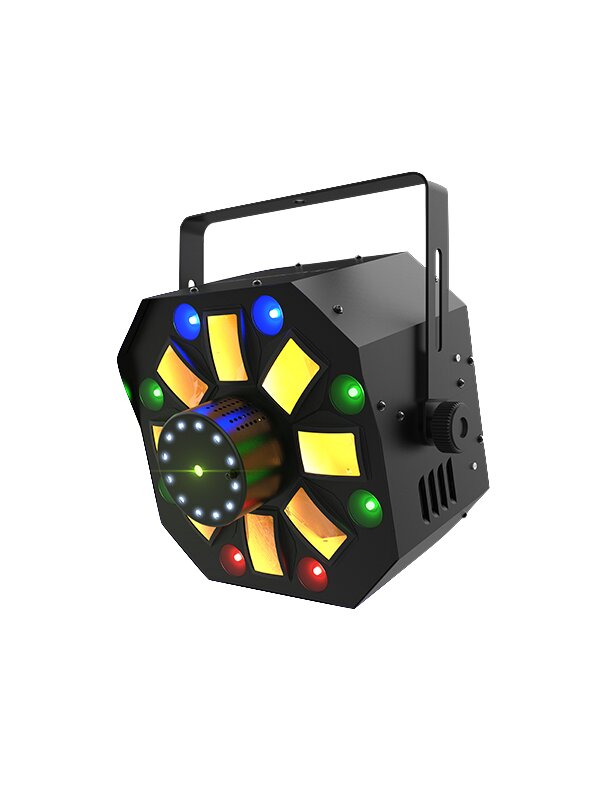

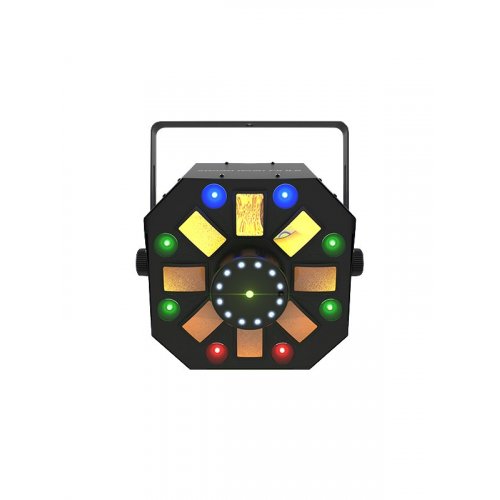

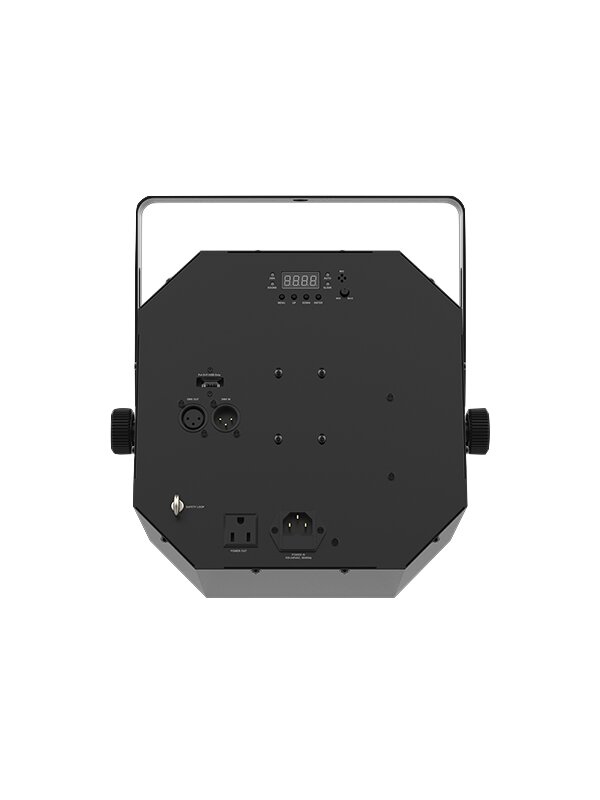

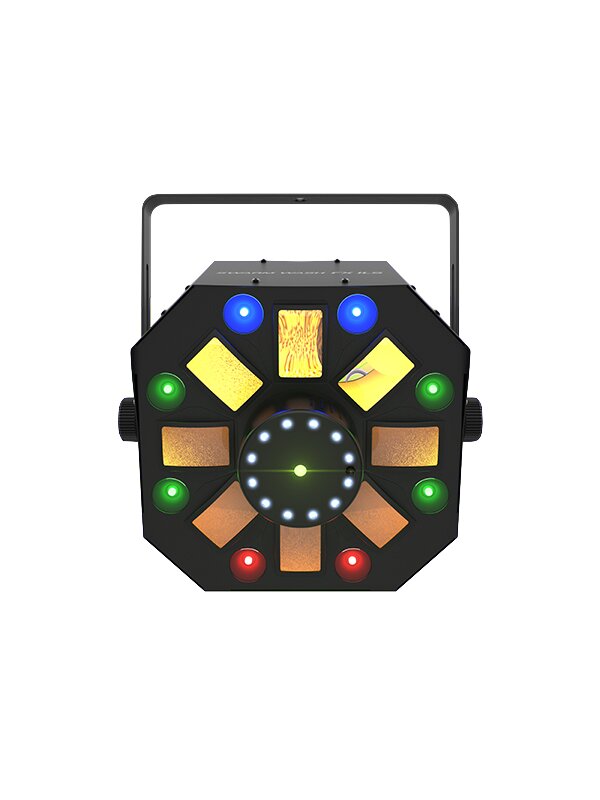

Chauvet DJ Swarm Wash FX ILS

About: Chauvet DJ Swarm Wash FX ILS

Dynamic lighting thrills are at hand with Swarm Wash FX ILS, a 4-in-1 LED light that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes. Imagine red and green laser beams projecting thousands of beams and built-in, eye-catching automatic and sound- activated programs that are easy to generate. It’s all the reality of Swarm Wash FX ILS. But the punch this powerful party light packs is its compatibility with the cutting-edge Integrated Lighting System (ILS) that makes creating coordinated light shows across different fixture types easy. Swarm Wash FX ILS also has D-Fi USB compatibility for wireless Master/Slave, or DMX control. Access built-in automated programs via IRC6 remote, Master/Slave or DMX.

Highlights

• 4-in-1 LED light that combines an RGBAW rotating derby, RGB+UV wash, red/green laser, and a ring of white SMD strobes
• ILS compatibility for use in the ILS ecosystem
• D-Fi USB compatibility for wireless Master/Slave, or DMX control
• Access built-in automated programs via IRC6 remote, Master/Slave or DMX
• Red and green laser beams project thousands of beams for maximum coverage
• Generate complex looks easily with built-in, eye-catching automatic and sound- activated programs
• Save time running extension cords by power linking multiple unit
• Fits best inside the CHS-40 VIP gear bag

Specifications

• DMX Channels: 2 or 18
• DMX Connectors: 3-pin XLR
• Light Source:
  • (Wash) 8 LEDs (quad-color RGB+UV) 1.5 W, (600 mA), 50,000 hours life expectancy
  • (Strobe) 12 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
  • (Laser): 650 nm/100 mW (red) laser diode, 520 nm/30 mW (green) laser diode
• Strobe Rate: 0 to 20 Hz
• Power Linking: 11 units @ 120 V; 20 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  • 51 W, 0.7 A @ 120 V, 60 Hz
  • 50 W, 0.4 A @ 230 V, 50 Hz
• Weight: 9.5 lb (4.3 kg)
• Size: 13.1 x 13 x 9.4 in (335 x 332 x 241 mm)
• Approvals: CE, FDA, RoHS, UKCA
• Optional controllers: IRC-6
• Coverage Angle:
  • (laser) 82°
  • (swarm): 65°
  • (strobe): 71°
  • (wash): 46°
• Classified per EN/IEC 60825-1: 2014
• Complies with FDA performance standards for laser products except for deviations pursuant to Laser Notice No. 56, dated May 8, 2019

WHAT'S INCLUDED

• Swarm Wash FX ILS
• Power cord
• User Manual
