Bose F1 Flexible Array Speaker w/ Subwoofer

Name: Bose F1 Flexible Array Speaker w/ Subwoofer
Brand: Bose
SKU: 16468
Price: 3038.00 CAD
Availability: InStock

F1-PKG

Package Deal

Bose F1 Flexible Array Speaker w/ Subwoofer

$3,038.00 CAD

Find it for Less? Let us Know.

Shipping Charges Apply
Not yet reviewed

Package Includes:

1 x Bose F1 Model 812 Flexible Array Speaker (Model: 731419-1110)
In Stock - Ship or Pick-up

1 x Bose F1 Subwoofer (Model: 731444-1110)
Special Order: Contact us for Lead Time

Description
Reviews

Bose F1 Flexible Array Speaker w/ Subwoofer

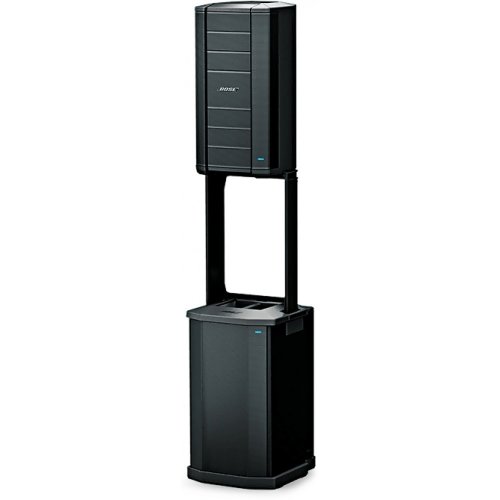

Bose F1 System with Subwoofer and Speaker unit

Bose F1 Model 812 Flexible Array Speaker

The Bose F1 Model 812 Flexible Array loudspeaker is the first powered portable loudspeaker that lets you control its vertical coverage pattern. Simply choose among four different settings. Whether you’re playing at floor level, on a stage, or facing raked seats or stands, you can now adapt your PA to match the room. And once set, the system automatically changes the EQ to maintain optimum tonal balance for each coverage pattern. So, wherever you’re playing, you can have the right coverage for the right room. And the F1 Subwoofer included in this package gives you extended bass for live or recorded music.

Exclusive flex array can be configured into four unique shapes (“Straight,” “C,” “J” or “Reverse J”), allowing the customer to choose the best possible coverage pattern for the application
Eight-driver mid/high line array mounted on a custom 100-degree waveguide helps deliver wide, consistent coverage
F1 Subwoofer plus 30.5 cm high-performance low-frequency driver provide deep, powerful bass
Bi-amplified design features two high-output, Class-D amplifiers to separately power the flex array and 30.5 cm LF driver
F1 Model 812 extension bracket integrated into the subwoofer can be raised and lowered, allowing the F1 Model 812 loudspeaker to be safely mounted to the subwoofer, eliminating the need for a conventional pole mount or tripod stand

Quality performance

Engineered with a flexible array of eight high-output mid/high drivers, a high-powered 30.5 cm woofer, a lower crossover point and 1,000-watt amplifier, the loudspeaker delivers high SPL performance while maintaining vocal and midrange clarity that’s dramatically better than conventional loudspeakers.

How it works

The eight drivers on the F1 Model 812 Flexible Array loudspeaker are mounted on a specially designed flexible baffle. Simply push or pull the array into position to create four vertical coverage patterns: “Straight,” ”J,” “Reverse J” or “C.” Once set, the system automatically changes the EQ to maintain optimum tonal balance for each unique coverage pattern.

F1 Model 812 enclosure

F1 Model 812: High impact composite materials
Frequency response (-3 dB): 52 Hz - 16kHz
Frequency range (-10 dB): 43 Hz - 20 kHz
Nominal dispersion: C: 100° H x 40° V
Maximum SPL @ 1 m: 132 dB SPL (peak)
Rated power: 1,000 W
Dimensions: 664.66 mm H x 334.3 mm W x 372.5 mm D
Weight: 20.18 kg

Bose F1 Subwoofer

With 1,000 watts of power, the Bose F1 Subwoofer packs all the performance of a larger bass box into a more compact design that’s easier to carry and fits in a car. A mounting stand for the Bose F1 Model 812 Flexible Array Loudspeaker is integrated right into the body of the subwoofer, so you always know where it is, making setup fast and easy. The stand even includes cable channels to neatly hide the wires, giving your system a clean, professional look. And now getting your unit to the venue is easier, too. The F1 Subwoofer features strategically placed handles for easy transport.

Features

1,000 watts allow the Bose F1 Subwoofer to pack all the performance of a larger bass box into a more compact design that’s lighter and easier to carry than conventional subwoofers.
Two high-excursion drivers, each measuring 10 inches, are built into a compact enclosure that is light and easy to transport
Polarity switch to adjust polarity of subwoofer. Selections are NORM and REV. Reversing polarity allows for easy correction of low-frequency overlap between the main loudspeaker and subwoofer
Line output EQ sets the F1 Subwoofer’s output to a high-pass filter or full range, which allows for easy crossover selection when used with a main loudspeaker
F1 Model 812 extension bracket is a unique bracket integrated into the subwoofer. This bracket can be raised and lowered by the end user, allowing the F1 Model 812 loudspeaker to be safely mounted to the subwoofer. The bracket eliminates the need for a conventional pole mount or tripod stand

Specifications

System Performance
- System Type - Self powered
- Frequency Response (–3 dB) - 40 Hz – 250 Hz
- Frequency Range (–10 dB) - 38 Hz – 250 Hz
- Nominal Dispersion - Omni-directional
- Maximum SPL @ 1 m - 130 dB SPL (peak 6 dB CF)
- Crossover Frequency - 40 – 100 Hz Butterworth Bandpass, 100 Hz 4th order Butterworth HPF at Line Out
Amplification
- System Power - 1000 W
- Distortion at Rated Power - 0.1 % Max (30 Hz - 15 kHz)
- System Limiter - Dynamic limiter
- Power Indicator - Blue LED: system on
Transducers
- Driver Compliment - 2 x 10" high-excursion drivers
Channels
- Signal Indicators - POWER/FAULT, LIMIT, FRONT LED, SIGNAL INPUT
- Input Connections - 2 XLR - 1/4" Combo
- Controls - Volume level, Front LED function select, Power on/off, Polarity select, Line output EQ
Additional Connections
- Line Output - XLR balanced
- AC Mains - IEC Connector
Physical
- Enclosure - Wood cabinet with high impact composite end caps
- Grille - Powder-coated perforated steel grille
- Dimensions - 27” H x 16.1” W x 17.6” D (688 x 410.16 x 448.5mm)
- Net Weight - 55 lbs (24.9 kg)
Power Supply Voltages
- Universal - AC power rating: 100-240 V 50 / 60 Hz +/- 20 %, 200 W max
