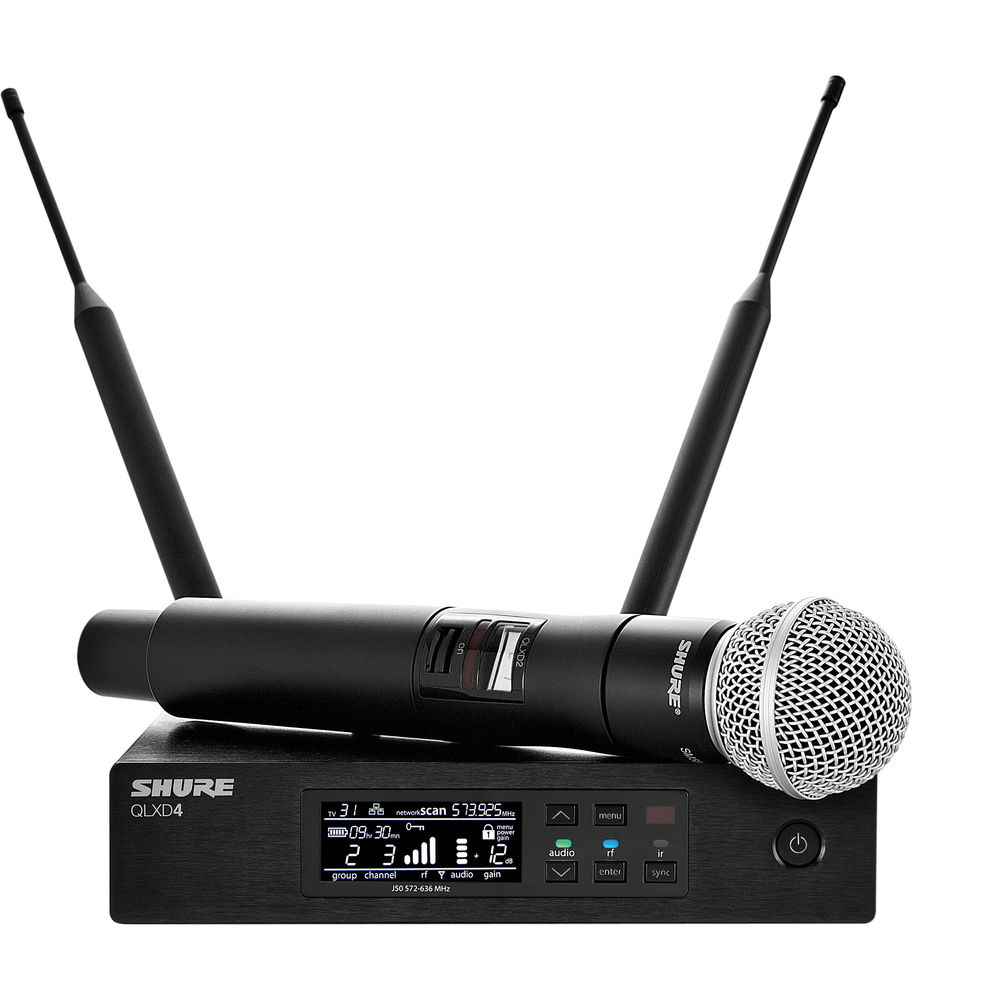

Shure QLXD24/SM58 Handheld Wireless Microphone System

With an interchangeable SM58® microphone cartridge, the QLXD2/SM58 Handheld Wireless Microphone Transmitter is ideal for wireless vocals in presentation spaces, music venues, and houses of worship.

Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.

Features

• 24-Bit digital audio quality
• Incredibly efficient RF spectrum usage
• Quick syncing with a wireless receiver over IR at the push of a button
• Clear, uninterrupted signal over the entire operating range
• AES 256-bit encryption for secure transmission
• Over 120 dB of dynamic range: no transmitter gain adjustment needed
• 1, 10 mW selectable RF output power
• Optional Shure SB900 lithium ion rechargeable battery reports remaining runtime in hours and minutes
• External charging contacts for docked charging
• Backlit LCD with easy to navigate menu and controls
• Selectable display mode showing group/channel, frequency, or battery runtime
• Rugged metal construction
• Frequency and power lockout

Specifications:

• Radio Frequency Range 20 Hz–20 kHz
• Rechargeable components? Yes
• Battery Requirements 2 AA alkaline batteries or SB900 Lithium-Ion Rechargeable Battery
• Battery Life Shure SB900: Up to 10 hours, Alkaline: Up to 9 hours
• Typical Operating Distance 100 m (330 ft) line of sight

Half-rack QLXD4 Digital Wireless Receiver combines professional features with streamlined set-up and operation. Features include Automatic Channel scan, Networked Channel Scan, digital predictive switching, and AES 256 encryption for security.

• 64 MHz tuning bandwidth (region dependent)
• More than 60 preset compatible channels per frequency band (region dependent)
• Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
• Digital predictive switching diversity ensures solid RF connection
• AES 256-bit encryption for secure wireless transmission
• Up to 60 dB of adjustable audio gain
• High-contrast LCD menu and controls with lockout feature
• Audio and RF LED meters with peak indicator
• Detachable ½ wave antennas
• Mic / line switchable XLR output
• ¼" Instrument output
• Durable aluminum construction with brushed finish

With transparent 24-bit digital audio quality and incredibly efficient RF spectrum usage, the QLXD4 Digital Wireless Receiver combines professional features with streamlined setup and operation.

Automatic scanning quickly finds open frequencies, and one-touch IR sync quickly deploys them to transmitters.

Ethernet networking enables networked channel scanning across multiple receivers and Wireless Workbench software integration for remote control of receiver settings from a PC or Mac. Remote monitoring and control from iOS devices also is available via the ShurePlus™ Channels Mobile App.

What's in the Box

• 1x PS24 Power supply
• 2x 1/2 Wave Antenna
• 2x BNC Cable
• 2x BNC Bulkhead Adapter
• 1x Rackmount Kit
• 1x Rackmount Bracket-Long
• 1x Rackmount Bracket-Short
• 1x Link plate
• 4x Receiver Rubber Feet
