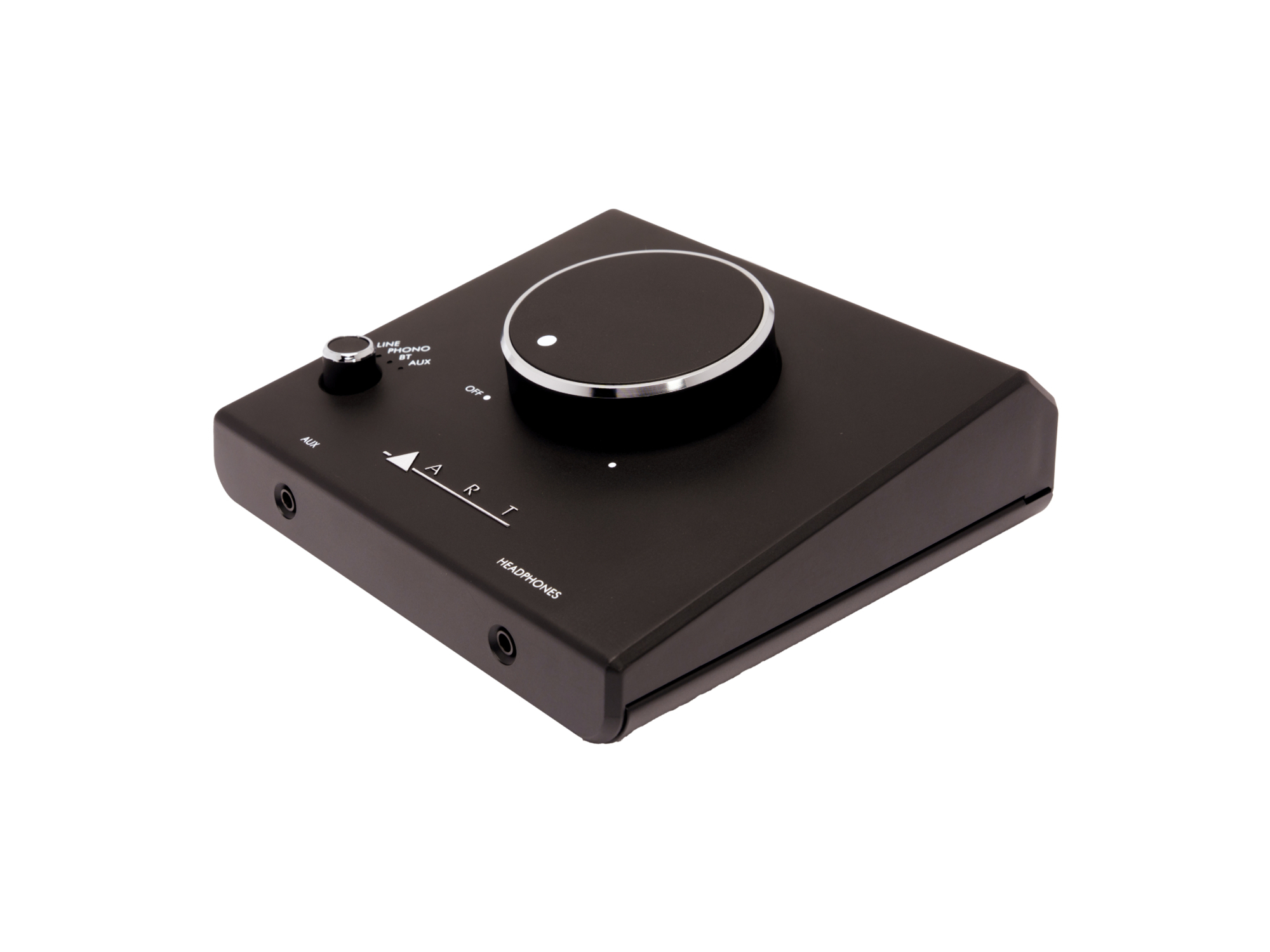

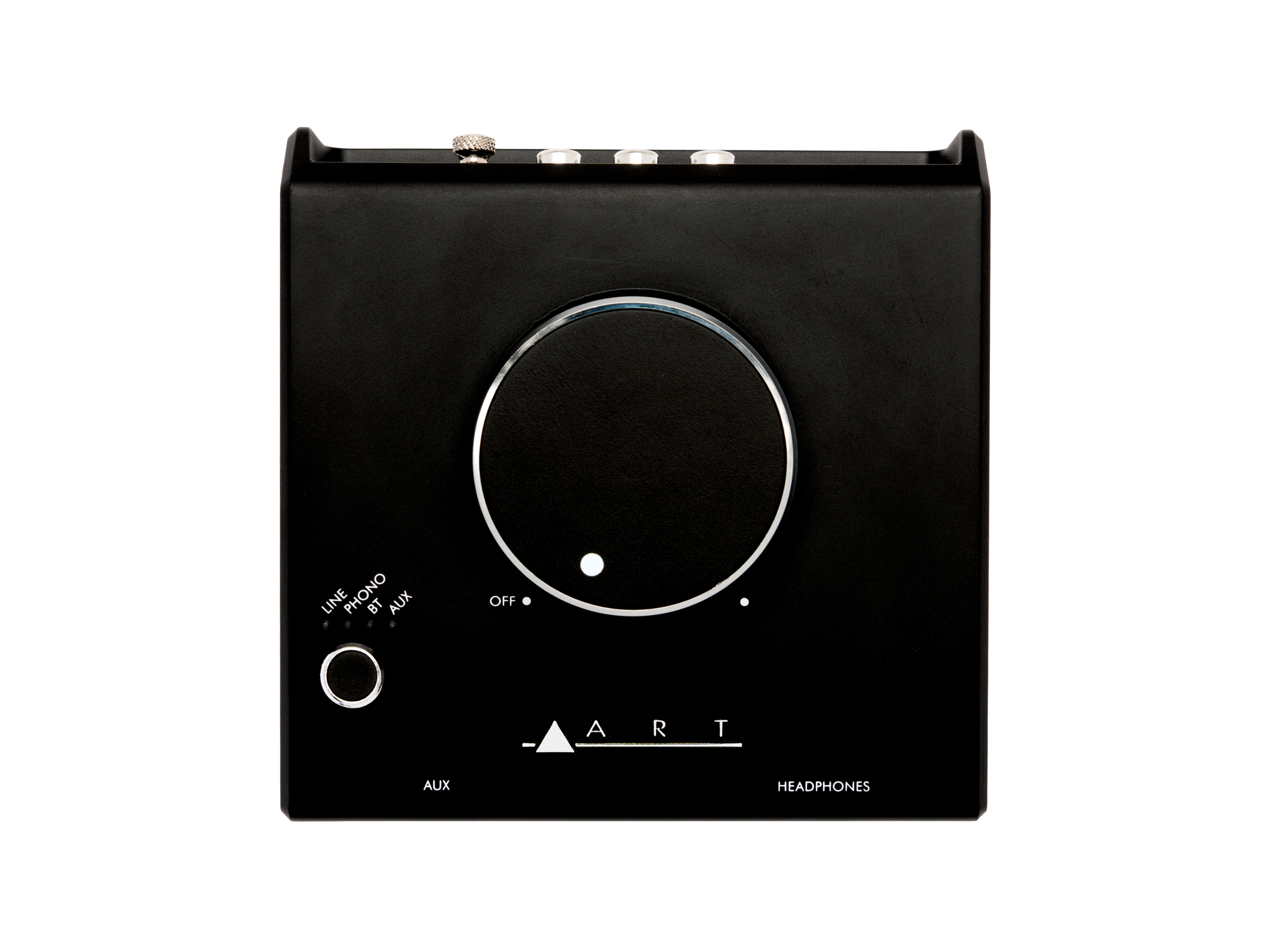

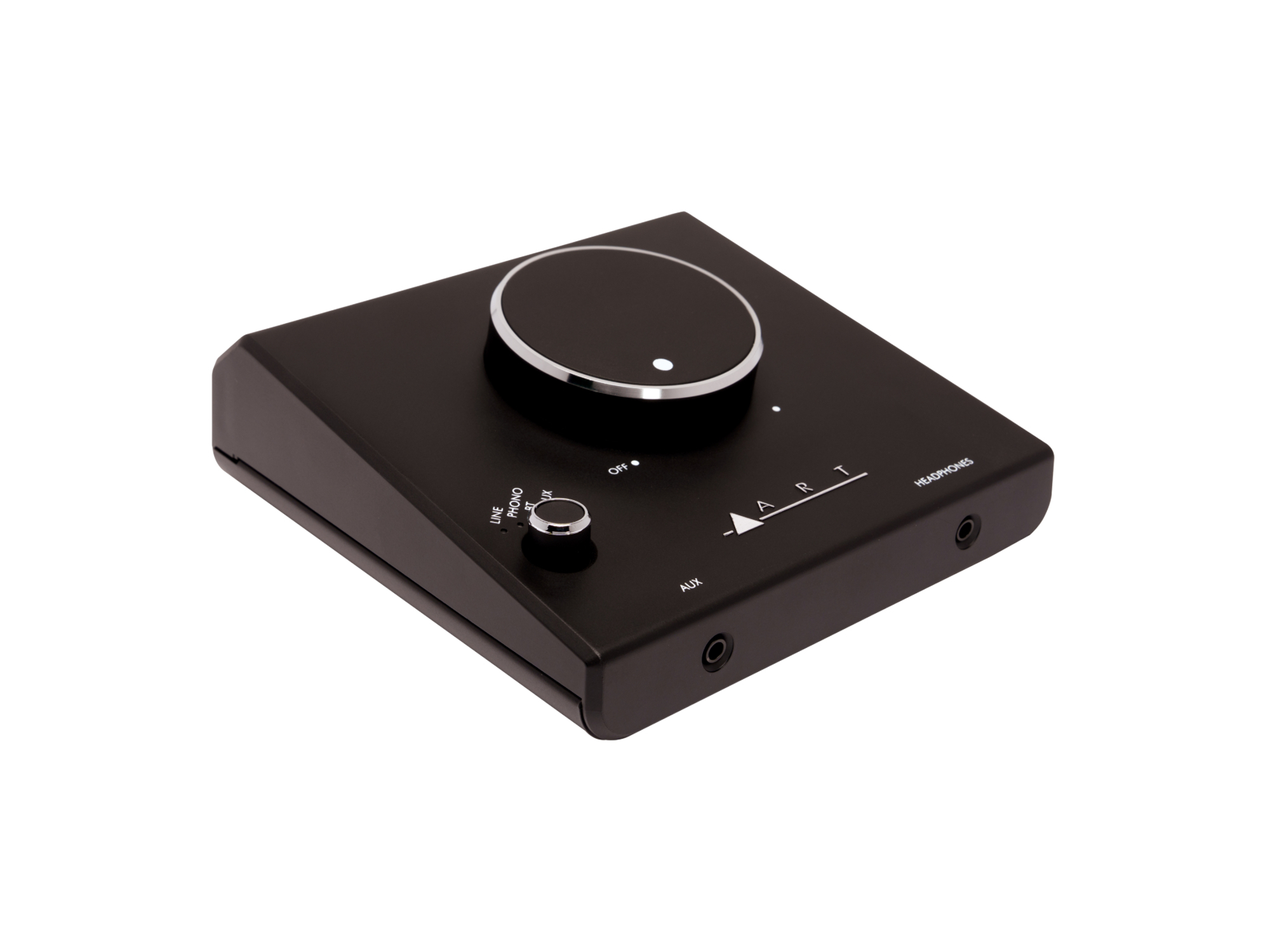

ART Vinyl Mix Phono Preamp and Switcher

About: ART Vinyl Mix Phono Preamp and Switcher

ART has been designing high-quality, affordable phono preamps for decades, and the Vinyl Mix is our best and most versatile model yet.

• Phono Preamp for Moving Magnet (MM) Cartridges
• Stereo RCA Line Input & 1/8” Aux Input
• Bluetooth Receiver
• Stereo 1/4” TRS & RCA Line Outputs
• 1/8” Headphone Output
• Universal Power Supply

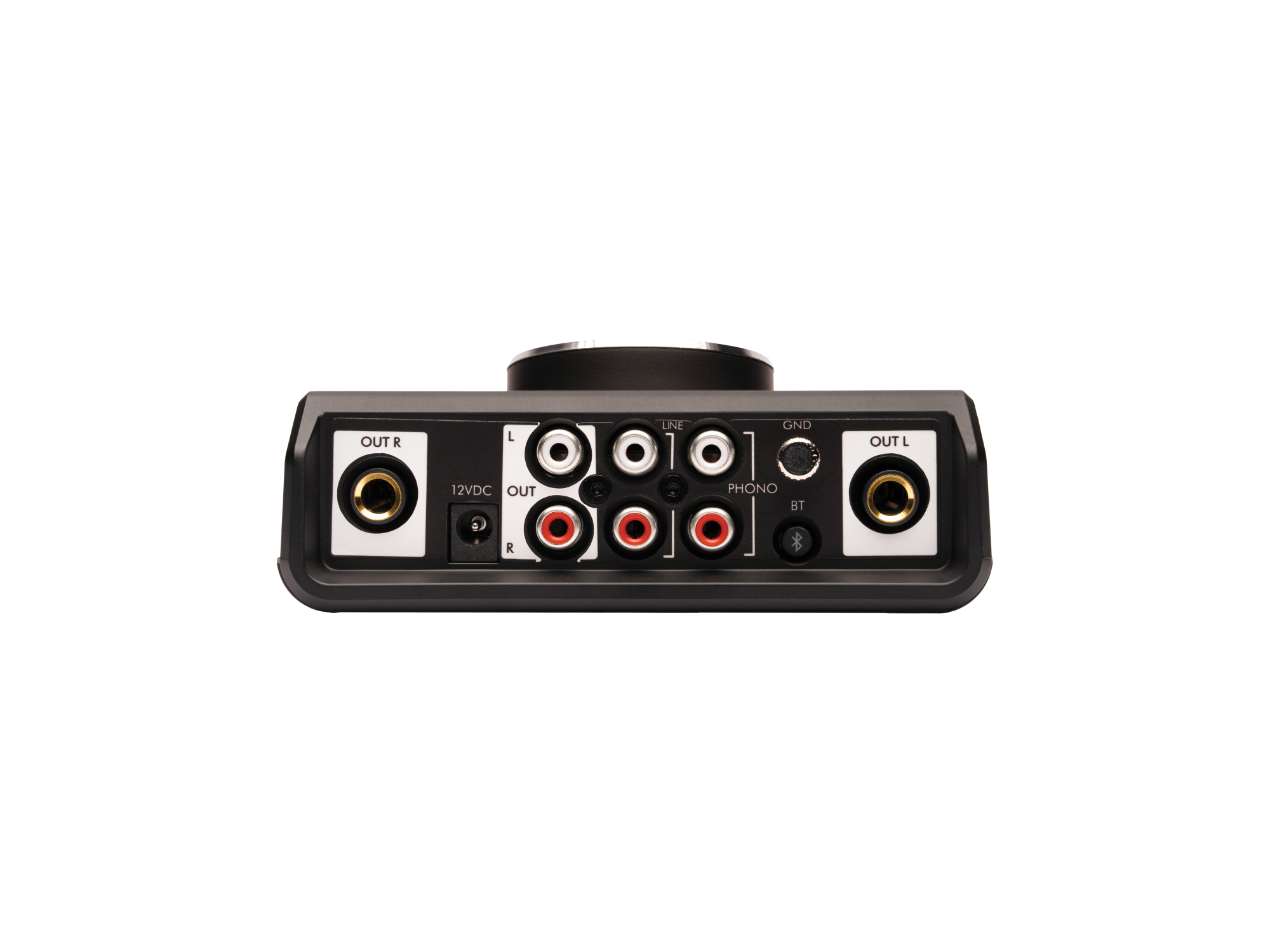

It’s a compact phono preamp with four selectable stereo inputs: RCA phono, RCA line, 1/8” Aux, and Bluetooth. It also has three stereo outputs: balanced 1/4” TRS, unbalanced RCA, and an 1/8” headphone jack. The 1/4” and RCA outputs can be used simultaneously, and the RCA output volume is fixed so you can freely adjust your listening level in studio monitors or headphones while sending a constant level to another device.

It features a hybrid passive RIAA correction circuit, Burr-Brown op amps, and a 32-bit Burr-Brown DAC for clear, detailed sound from your analog and digital sources.

Whether you need to stream music from your phone to a hi-fi receiver, or connect your turntable to powered studio monitors or an audio interface, the Vinyl Mix is a convenient bridge between classic and contemporary sound systems.

Specifications

• Inputs
  • Stereo Line (RCA)
  • Stereo Phono (RCA)
  • Bluetooth Receiver
  • Aux (1/8” TRS)
• Outputs
  • Stereo Line (1/4” TRS and RCA)
  • Stereo Headphone (1/8” TRS)
• Input Impedance
  • 47 kΩ (Phono)
  • 10 kΩ (Line)
• Output Impedance: <100Ω (All Outputs)
• Nominal Input Level
  • 5 mVrms (Phono)
  • 500 mVrms (Line)
• Maximum Input Level
  • 45 mVrms (Phono)
  • 8 Vrms (Line)
• Maximum Output Level
  • 8 Vrms (Line)
  • 1.1 Vrms (Headphones, 33Ω)
  • 8.2 Vrms (Headphones, 330Ω)
• Maximum Gain
  • 3 dB (Line)
  • 45 dB (Phono)
• Frequency Response
  • 10 Hz - 40 kHz +/- 0.1 dB (Line)
  • 20 Hz - 20 kHz +/- 0.5 dB (Phono)
• Dynamic Range (A-Weighted)
  • 100 dB (Line)
  • 80 dB (Phono)
• Bluetooth: v5
• Construction: Steel Base with Plastic Top
• Power Requirements
  • 100-240VAC 50-60Hz
  • 12VDC/1A Universal Power Supply Included
• Dimensions: 5 x 5 x 1.5 inch (13 x 13 x 4 cm)
• Weight 1 lb (0.5 kg)
