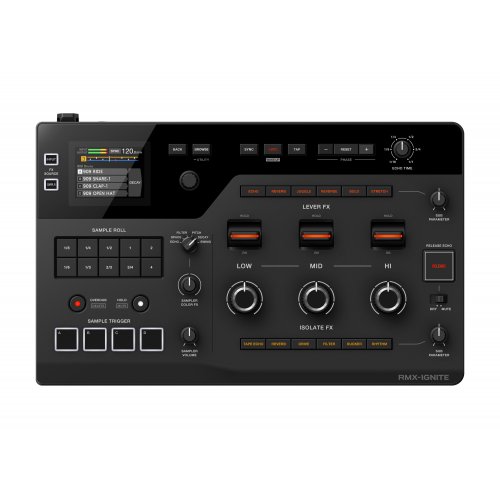

AlphaTheta RMX-IGNITE DJ Effector & Sampler

About: AlphaTheta RMX-IGNITE DJ Effector & Sampler

Unleash your energy and IGNITE the dancefloor.

Refined layout and design

Engineered for clarity and precision, the interface supports your creativity.

Get the crowd moving

Energize your sound with expressive, hands-on control. Maximize every nuance of the music through advanced effects.

Understand your gear at a glance

From above, the CDJ, DJM, and RMX-IGNITE form a clear, aligned layout. All the controls can be read at a glance, so you know exactly what to adjust – even before you start playing.

Multiple machines, 1 instrument

Pads, knobs, and faders blend into 1 layout. With your CDJs, mixer, and other gear aligned, your setup becomes a single instrument at your fingertips.

Features

• 3-Band FX: The 3-Band FX section includes Lever FX and Isolate FX, and you can apply each to the high, mid, or low frequency bands.
  • Combining the 2 effect types opens diverse performance options and, with the sub-parameter knobs, you can refine the tone for richer, more expressive sounds.
• Lever FX: Use the 3 large levers to apply instant, dramatic effects:
  • Echo, Reverb, Juggle, Reverse, Solo, and Stretch.
• Isolate FX: 3 large knobs enable smooth and dynamic control of Tape Echo, Reverb, Drive,
  • Filter, Ducker, and Rhythm.
• Release Echo: With a single button, you can instantly clear effects and samples, returning smoothly to the original track with an echo tail.
• Sample Trigger Pad: Use the 4 responsive pads to intuitively trigger 20 built-in samples from Loopmasters.
  • In Overdub mode, you can loop 1-bar phrases and layer samples to build dynamic progressions.
• Sample Roll: Samples triggered with the pads can be rolled in 10 patterns.
  • With the new Groove Roll, you can press multiple buttons at once to create accented, flowing rolls that show your individuality and bring energy to your buildups.
• Sampler Color FX: Control 6 dedicated effects – Echo, Space, Filter, Pitch, Decay, and Swing – with 1 knob to instantly reshape samples with added depth or groove.
• RMX-IGNITE Sample Manager: Play your own samples from a USB drive or any PRO DJ LINK–connected multi player.

Digital send/return

Quick setup means you can start playing right away. Simply connect a USB cable to your mixer’s MULTI I/O terminal. (DJM-A9 & DJM-V10 compatible)

1. No risk of connection errors.
2. Sound quality does not degrade.
3. Receives non-audio data, including BPM and grid information.

PRO DJ LINK

Sample playback - Load samples directly from PRO DJ LINK–connected players without dedicated sample storage.

• BPM and grid information are synced automatically.

High-fidelity design

Studio-quality 96 kHz / 64-bit DSP and ESS 32-bit AD/DA converters reproduce the music with striking clarity and depth.

Every component is tuned to let the original sound breathe, capturing subtle details and expression.

What you hear is true to the source, the moment, and your touch.

• ADC: ES9821Q (32bit, 120dB)
• DAC
  • ES9017S (32bit, 120dB)
  • 4ch sum 124 dB
• DSP MIXING: 96kHz/64bit

Specifications

• General
  • Power requirements: AC 100 V – 240 V, 50 Hz / 60 Hz
  • Power consumption: DC 15 V, 3.0 A
  • Power consumption (OFF): 0.3 W
  • Operating temperature: +5 °C – +35 °C
  • Operating humidity: 5% – 85% (no condensation)
  • Max. external dimensions (WxDxH): 13.4 x 8.4 x 2.9 inch (340 x 213.3 x 72.8mm)
  • Weight: 5.1 lbs. (2.3 kg)
• Audio
  • Sampling rate: 96 kHz
  • A/D, D/A converter: 32 bit
  • Frequency response: 20 Hz – 40 kHz
  • S/N ratio (rated output, A-weighted)
    • CONNECTION switch (MST): 115 dB
    • CONNECTION switch (SEND/RETURN): 114 dB
    • CONNECTION switch (CDJ): 108 dB
  • Total harmonic distortion (20 Hz – 20 kHz BW): 0.0018 %
  • Standard input level / Standard output level
    • CONNECTION switch (MST): +4 dBu / +4 dBu
    • CONNECTION switch (SEND/RETURN): -7.8 dBu / -7.8 dBu
    • CONNECTION switch (CDJ): -6 dBu / -12 dBu
  • Input impedance: 47 kΩ
  • Output impedance: 680 Ω or less
  • Rated output level / Load impedance
    • CONNECTION switch (MST): 21 dBu / 10 kΩ
    • CONNECTION switch (SEND/RETURN): 12 dBu / 10 kΩ
    • CONNECTION switch (CDJ): 3 dBu / 10 kΩ
• Input / Output terminals
  • Input: 1/4″ TS jack x 1
  • Output: 1/4″ TS jack x 1
  • USB Type-A (for SAMPLER): 1 set (Power supply : 5 V/1 A or less)
  • USB Type-C (for MULTI I/O, AC adapter): 2 sets
  • LINK: LAN (100BASE-TX) x 1
• Supported file formats
  • WAV
    • Bit depth: 16 bit / 24 bit
    • Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
  • AIFF
    • Bit depth: 16 bit / 24 bit
    • Sapmling frequency: 44.1 kHz / 48 kHz / 88.2 kHz / 96 kHz
      • *Some files may not be playable, even if they are in a supported format.
