Bittree Flush-Mount Modular Feed-Through Panel in 1 RU with 1x24 Jack Config.
Model: DSKP124B-C6FS
About: Bittree Flush-Mount Modular Feed-Through Panel in 1 RU with 1x24 Jack Config.

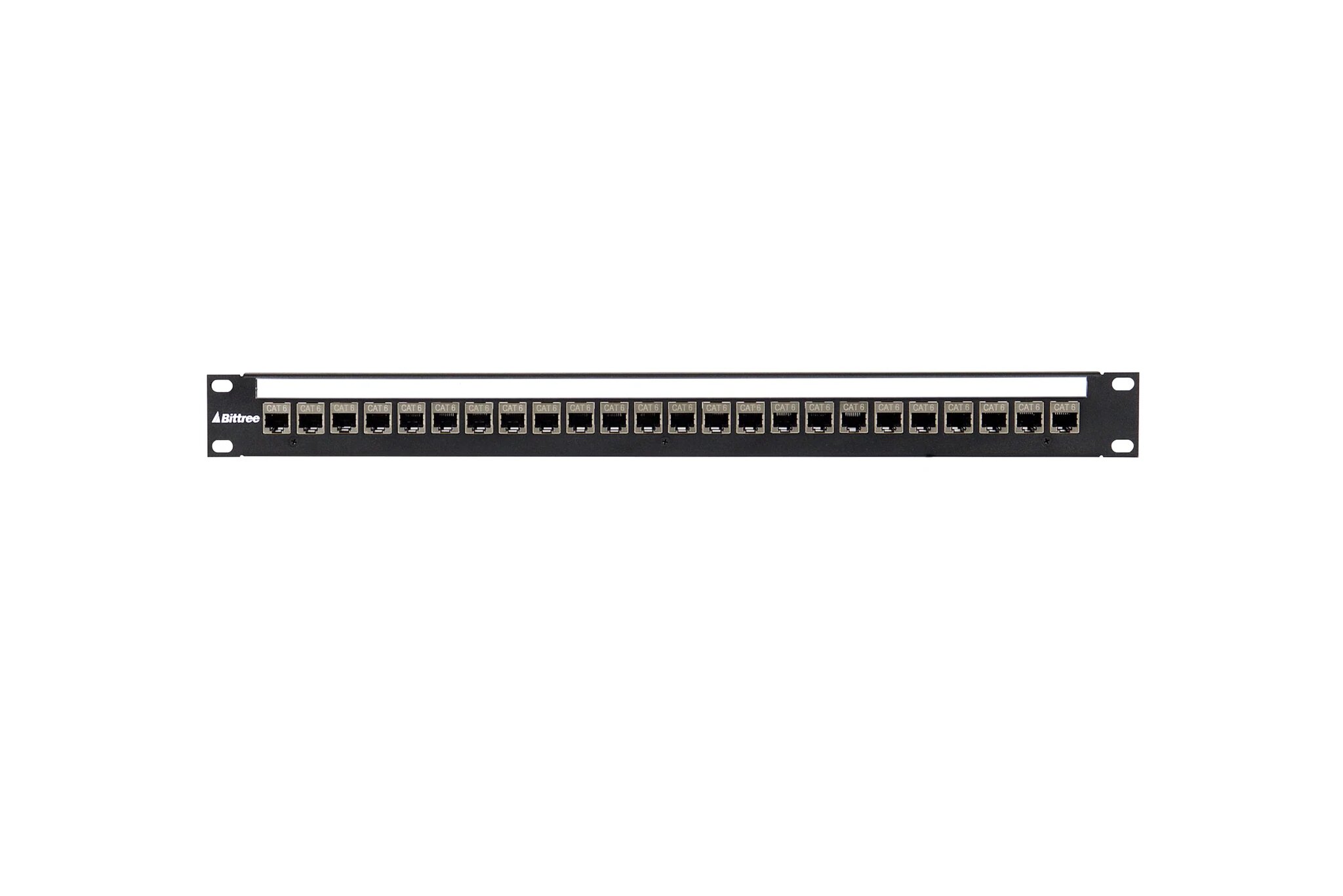

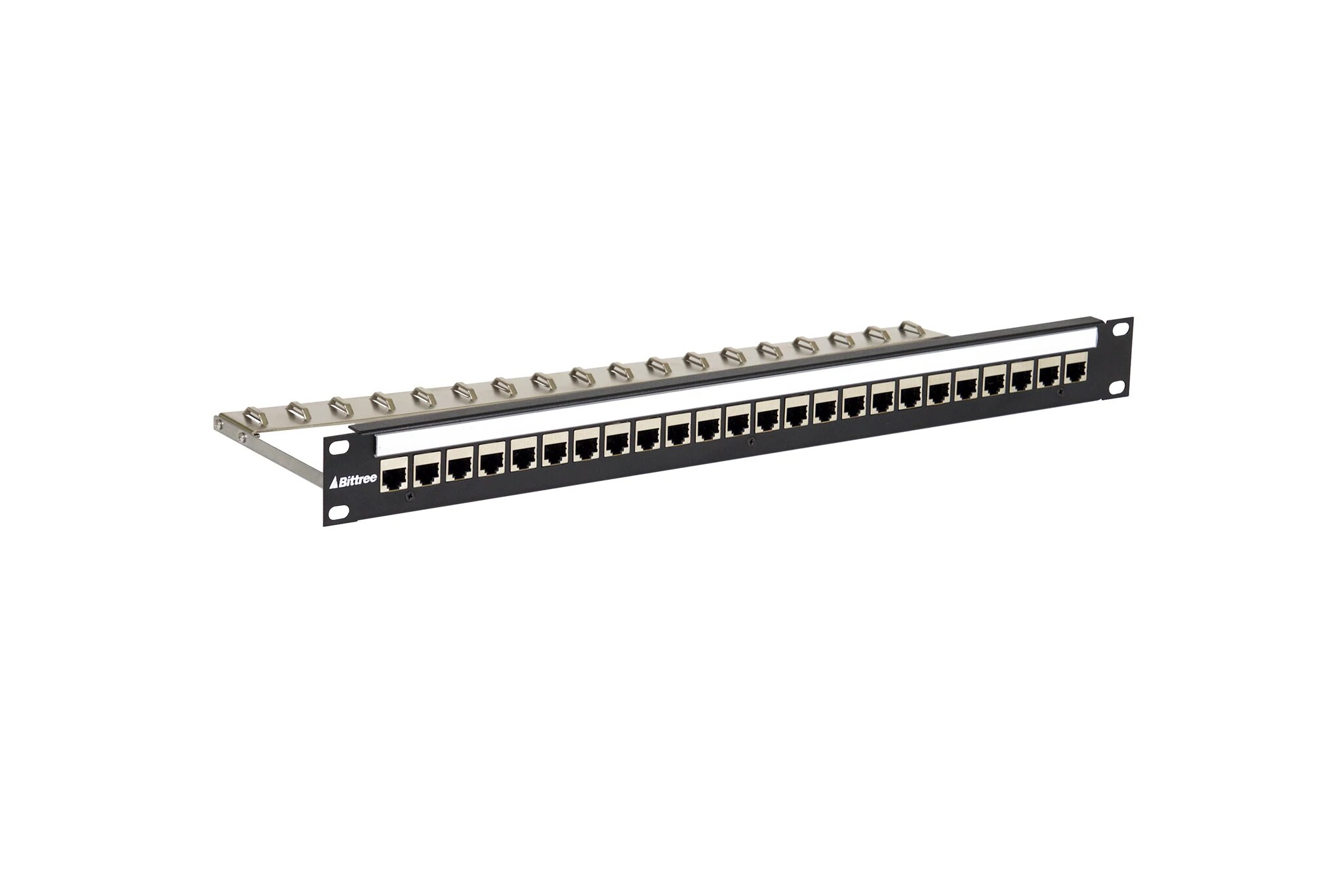

Bittree Flush-Mount Modular Feed-Through Panel in 1 RU with 1x24 Jack Configuration
- Panel and jack modules are packaged separately for simplified termination/integration
CAT 6 Jack Properties:
- RJ45 jack to RJ45 jack with shielding for protection from EMI, RFI, and alien crosstalk
- High-impact ABS resin housing and PBT contact holder, UL 94 V-0
- Nickel-plated phosphor bronze contacts with gold over plate
- Shielded connector for protection from EMI, RFI and alien crosstalk
Panel Features:

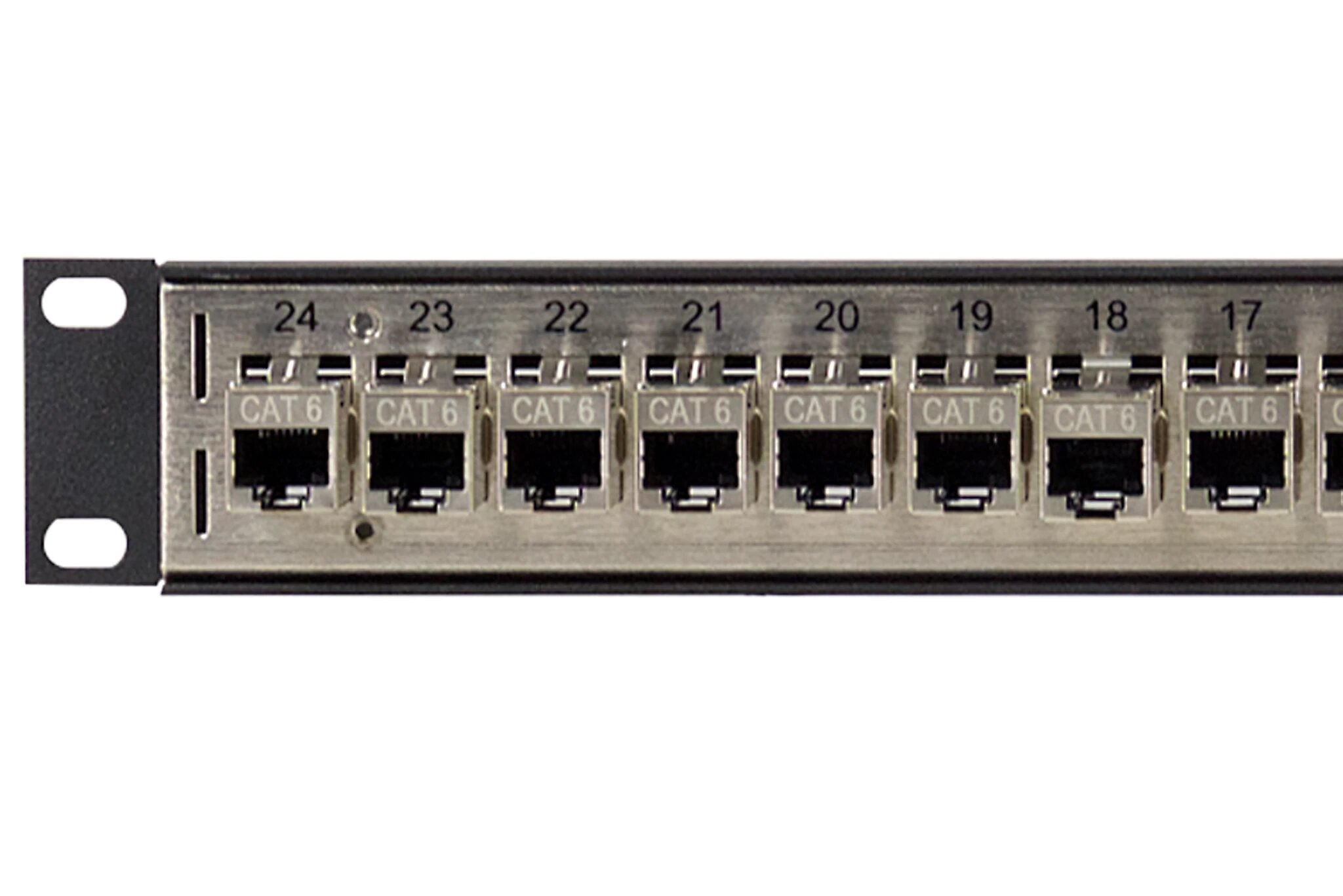

- Keystone jacks mount flush with the surface of the panel
- Accommodates high-density (HD) keystone inserts with up to a 17 mm width
- Folded steel front panel with a durable black powder-coat finish

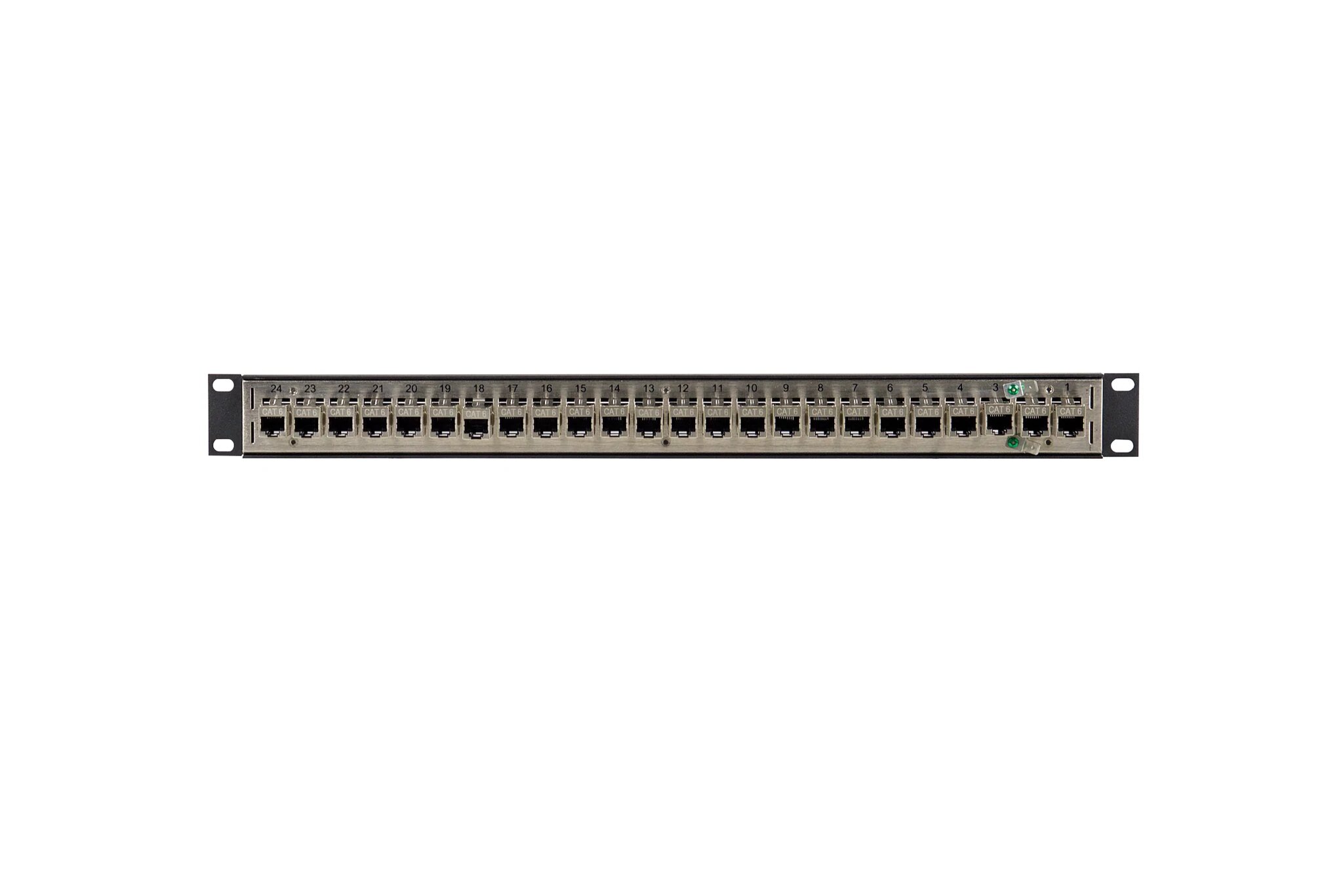

- Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks
- Silk screened circuit numbering on the rear
- 1 x DS430-10 designation strip on the front (bar and cap design)

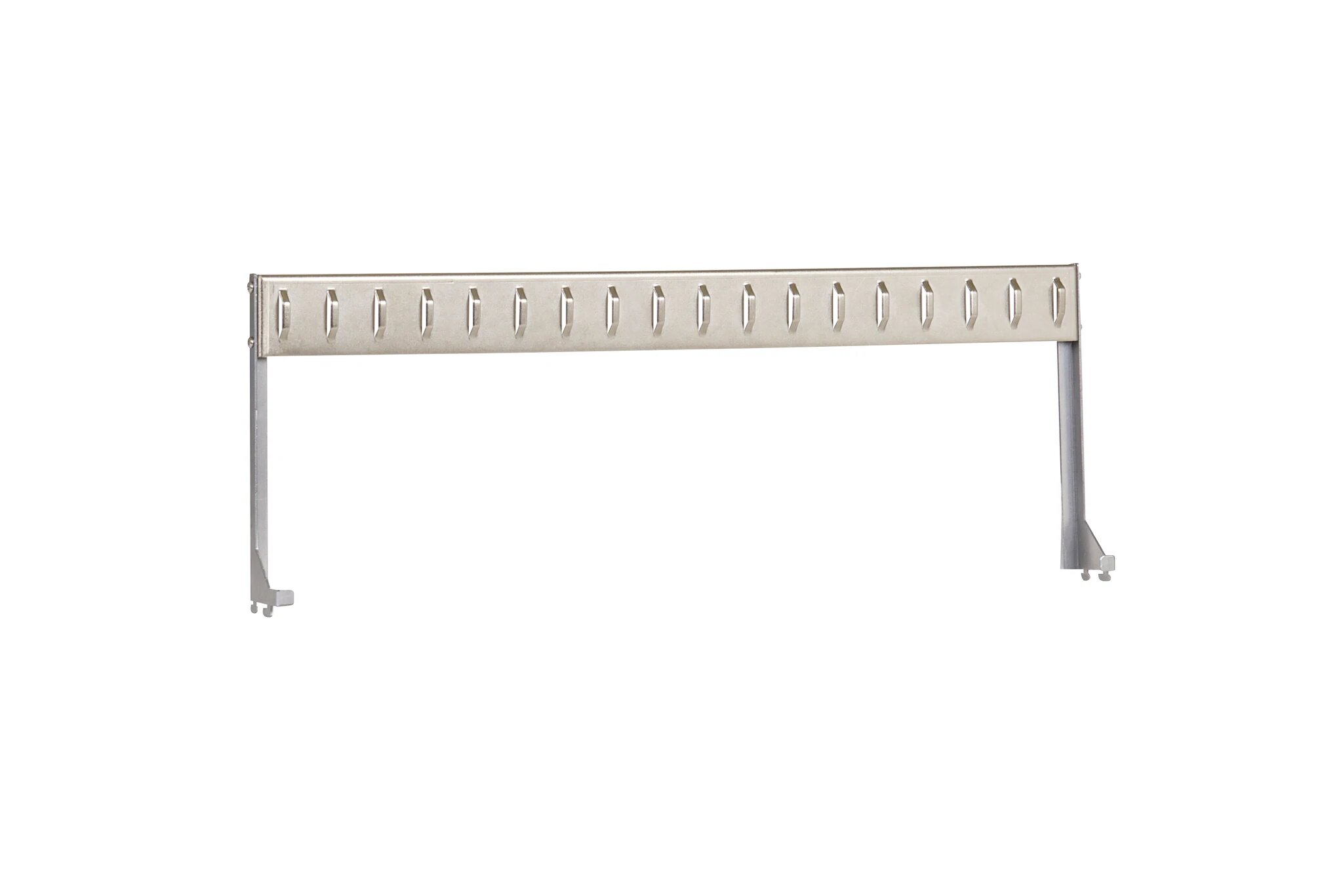

- 6" (15.24 cm) deep removable rear lacing bar for cable dressing
