SmallRig Four-Channel Charger for DMW-BLK22 Batteries

About: SmallRig Four-Channel Charger for DMW-BLK22 Batteries

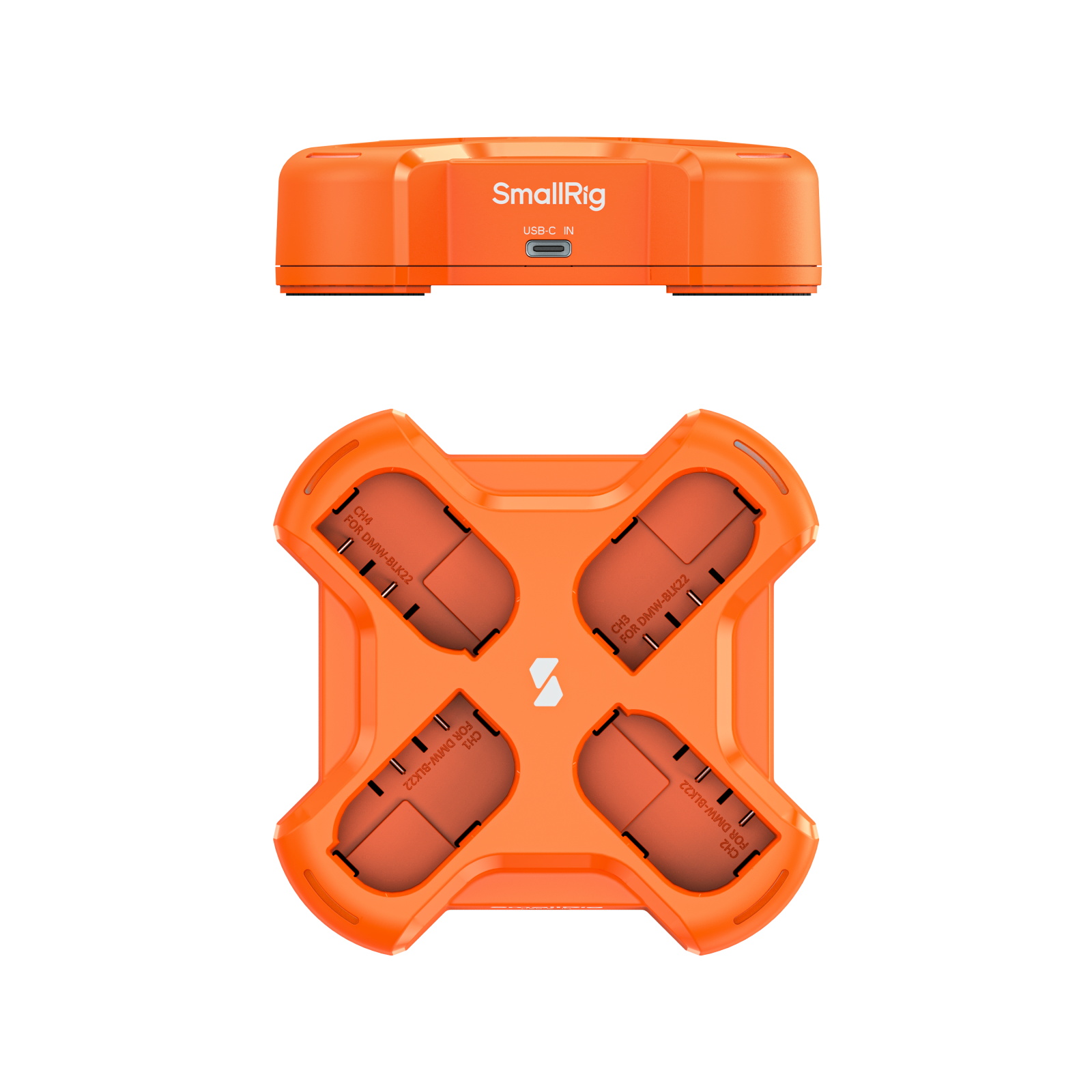

SmallRig Four-Channel Camera Battery Charger for DMW-BLK22 is a high-efficiency, high-power charger designed for DMW-BLK22 batteries. With a 45W max input and full protocol compatibility (including 5V/1A adapters), it intelligently queues charging based on the adapter’s power.

• 4-Channel Fast Charging: With 45W PD protocol input, this charger significantly boosts efficiency—fully charging 4 batteries in just 3 hours—keeping your devices ready at all times.
• Universal Protocol Compatibility: Supports 5V, 9V, 12V, and 15V inputs, including 5V/1A adapters. Smart queued charging activates based on voltage: 5V activates 1 channel; 9V activates 2 channels; 12V activates 3 channels; and 15V can charge 4 channels simultaneously.
• Comprehensive Safety Protection: Each output port features short-circuit and overcurrent protection, ensuring safe and dependable charging.
• Compact and Portable Design: Lightweight and portable, this charger is ideal for both travel and daily use—your ultimate charging companion.

The four dedicated channels allow for simultaneous charging of four DMW-BLK22 batteries, delivering efficient fast charging to meet demanding shooting schedules.

Each output port is equipped with short-circuit and overcurrent protection, ensuring safe operation at all times.

Its compact and portable design makes it ideal for both travel and daily use, providing reliable battery charging wherever you go.

Charging Time

• Battery Capacity: 2600mAh (e.g., ID 4906, 4906AC, 4979, 6906AC)
• Full Charge: 4 batteries in 3 hours

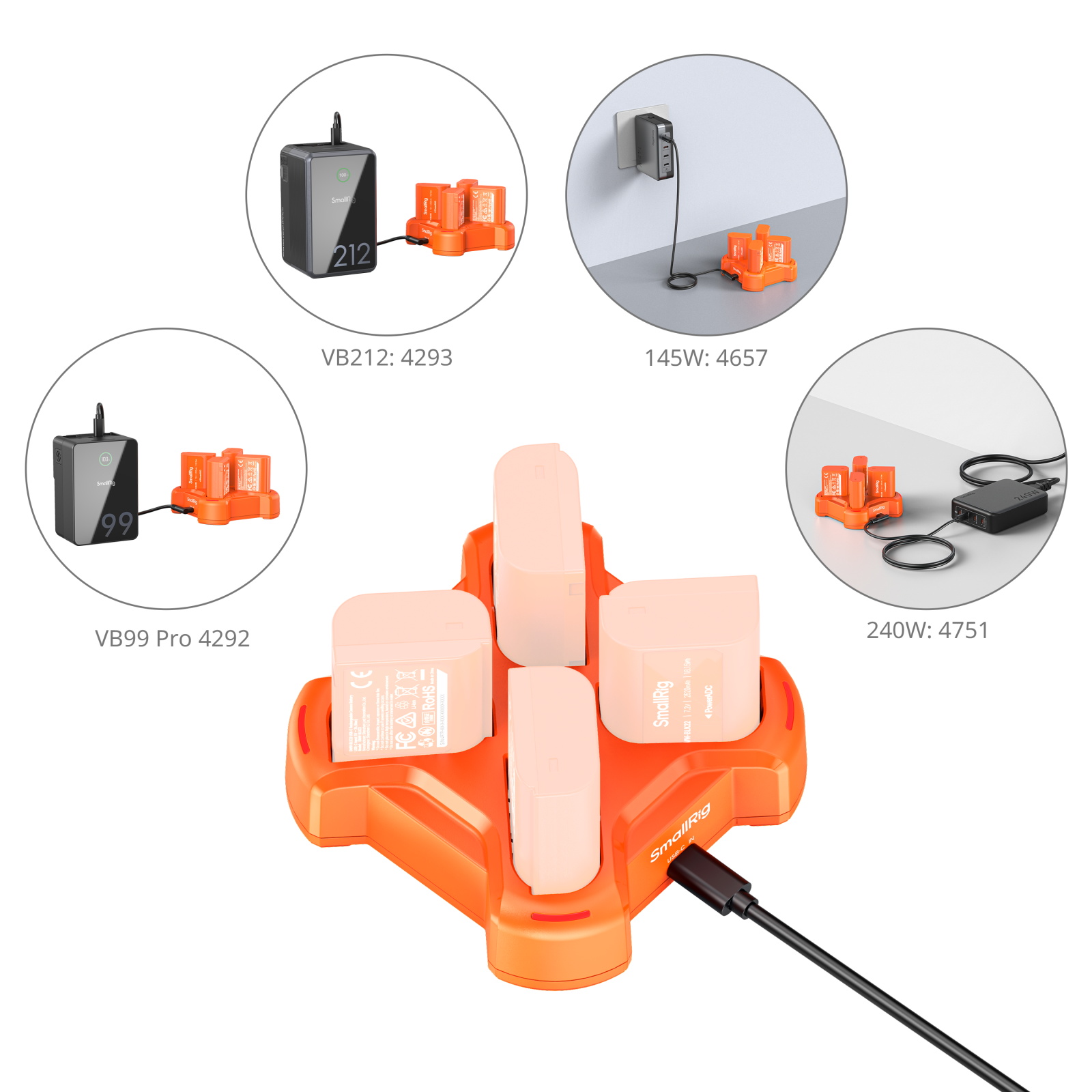

  • NOTE: For optimal performance, it is recommended to use a USB-C charger with an output power of 45W or higher.

Compatibility

• DC-S5, DC-S5K, DC-S5II, DC-S5IIX, DC-S5M2, DC-S5M2X, DC-GH5M2, DC-GH6, DC-GH6L, DC-GH7, and other cameras using DMW-BLK22 batteries.

Specifications

• Material(s): ABS + PC
• USB-C Input: 5V⎓2A, 9V⎓2A, 12V⎓2A, 15V⎓3A (Max 45W)
• Output (per channel): 8.4V⎓0.9A, 8.4V⎓1.8A, 8.4V⎓2.5A
• USB-C Protocol: PD
• Charge Limit Voltage: 8.45V
• Operating Temperature: 5°C – 45°C / 41°F – 113°F
• Certifications: FCC / CE / PSE / KC / RCM
• Dimensions: 106.0 x 106.0 x 30.0mm / 4.2 x 4.2 x 1.2in
• Weight: 0.31lbs (140.0 ± 5.0g)

What's in the Box

• 1x DMW-BLK22 Four-Channel Charger
• 1x 65W USB-C to USB-C Charging Cable
• 1x User Manual
• 1x Guarantee Card
