Yamaha RUio0804-D 8-in/4-out 1U I/O Stagebox

About: Yamaha RUio0804-D 8-in/4-out 1U I/O Stagebox

The Dante-compatible RUio0804-D is a compact 1U I/O stagebox featuring 8 analog inputs and 4 analog outputs. Designed for seamless integration with Yamaha digital mixers and processors, it provides a portable and flexible solution for expanding system connectivity.

Yamaha's guiding principle in live sound design has always been to capture transparent sound from the stage and only then to color it with successive layers of audio processing

Compact, portable I/O solution for any application

With 8 XLR inputs, 4 XLR outputs, and Dante-compatibility in a compact 1U chassis, this portable I/O rack is the perfect fit for installed use at venues such as theaters, temporary setups at live performances and events, and everywhere in between—no more so than when you find yourself needing a few more channels somewhere away from the mixing console. The RUio0804-D 1U also provides for simple, flexible system design through Dante connectivity and remote control from the console.

Dante-enabled for flexible system design

Audinate’s Dante network protocol offers unrivalled flexibility in system setup and configuration, and gives you the freedom to assemble almost any combination of devices to suit your needs and physically locate them wherever you find most convenient. As if that weren’t enough, Dante also features built-in redundancy to keep your system operating even if a problem were to occur.

Effortless control from Yamaha consoles and processors

With your RUio0804-D connected via Dante to Yamaha digital mixing consoles and other audio processors, managing patching and I/O parameters is simple. When connected to a mixing console, the stagebox can be mounted as a Dante device, allowing you to remotely control HA gain and other parameters. Meanwhile, when connected to a processor, parameters can be controlled using our ProVisionaire Design application.

• Mixer Compatibility List

Special port for dedicated control within huge setups

The RUio0804-D features a special control port that lets you configure a dedicated network address for reliable control even when part of a large system. In other words, you can set up a dependable control system without affecting the Dante network.

Use anywhere with R-Remote

Also compatible with the R Remote control app for Yamaha I/O products, the RUio0804-D can be used as a lightweight, compact Dante interface with R Remote controlling HA gain and other parameters for recording and other applications where a mixing desk is not needed.

A solid foundation for inspirational live sound

More than just compact and portable, the RUio0804-D also inherits Yamaha's time-honored tradition of staying true to the real sound, just like the RPio622/222 and Rio3224-D3/1608-D3 before it. This stagebox has been designed and built to capture the stage sound in all its glory and deliver to the mixing console pure.

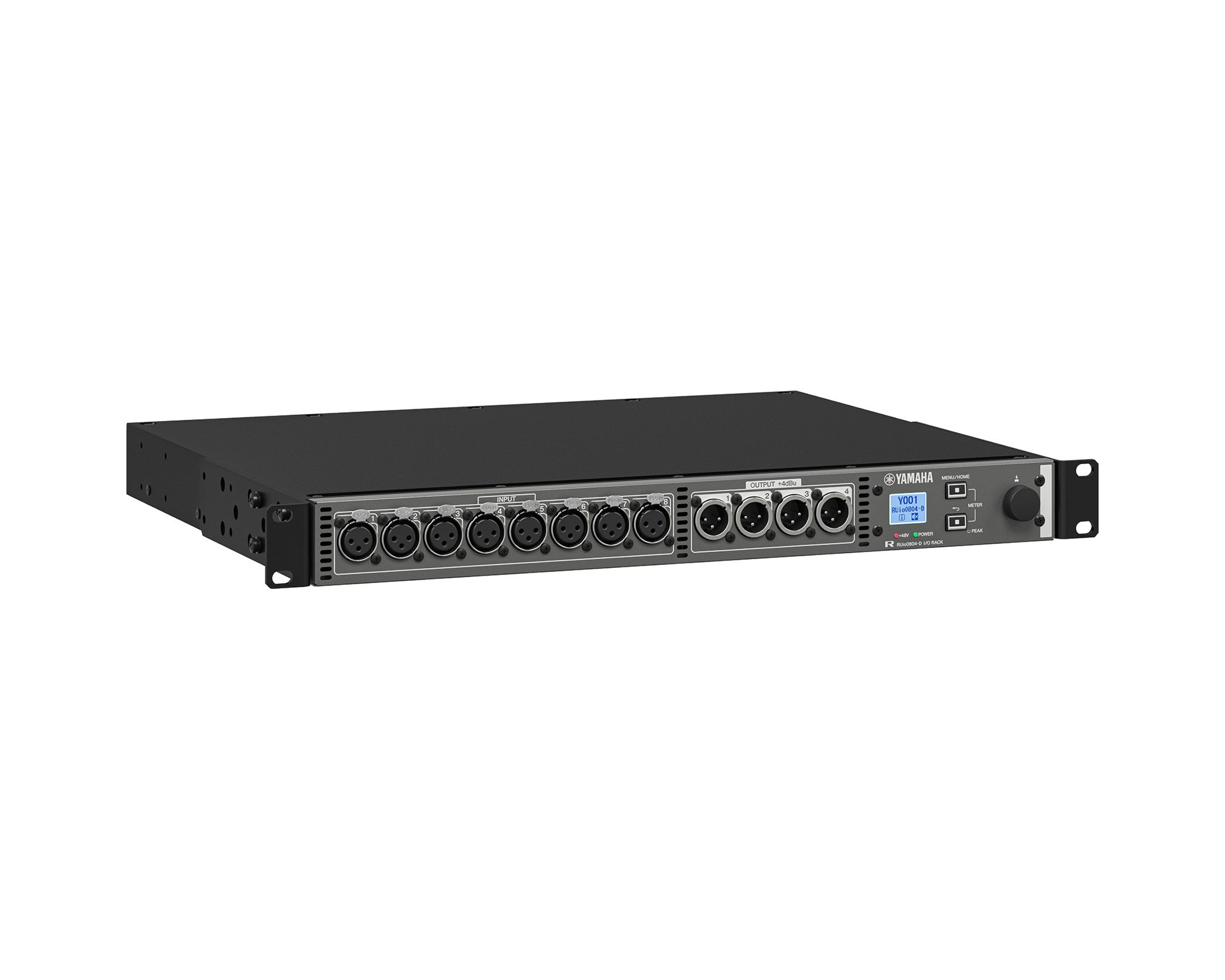

Check and set parameters right away with the onboard display

Use the built-in mini-LCD screen to conveniently check and set Dante and input/output parameters directly—no need to connect to a mixing console or PC. And in the event of an error, the unit's keys and LEDs light up so you can take action with a minimum of delay.

Specifications

• Analog I/O: 8 inputs / 4 outputs
• Dante: 4 receive channels, 8 transmit channels
• Local display and control of gain and phantom power settings
• Power consumption: 30 W
• Dimensions (WxHxD): 18.9 x 1.7 x 14.5 inch (480 x 44 x 369 mm)
• Weight: 8.2 lb (3.7 kg)
