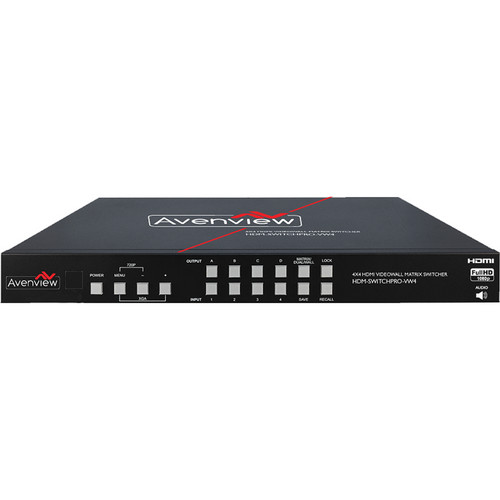

Avenview HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support

Model: HDM-SWITCHPRO-VW4

Avenview HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support
Avenview HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support
  • Free Shipping!
  • Usually Ships 3-4 Weeks
  • Not yet reviewed




About: Avenview HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support

The Avenview HDM-SWITCHPRO-VW4 is a unique powerful processor, developed especially for our installers and clients needs.

This small form factor HDMI device can perform many functions such as:

4x4 Matrix switcher - This device can input 4 HDMI digital sources and then distribute the video and audio signal to any 4 HDMI HD Monitors. Supported video timings up to 1080p@60Hz Full HD and WUXGA Wide 1920x1200 audio formats up to 7.1CH LPCM AT 192Hz. This device can be configured   using the IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired 1-4 output sources.

Multi Input Splitter – This device can input 4 HDMI digital sources and then duplicate one source at once to the connected 4 HDMI HD Monitors. . This device can be configured   using the IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired output source.

Dual-Viewer – This device can input 4 HDMI digital sources and then combine, (4) four video signals onto two HD Monitors at Full HD 1080p. This device can be configured using the IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired PAP (Picture Aside Picture).

Video wall 2x2 – This device can input 4 HDMI digital sources and scale (1) one Input across the (4) four HD monitors in a 2x2 configuration at Full HD 1080p. This device can be configured using the IR Remote, Telnet, Rs232 or Front Panel buttons to set the desired video across the (4) four HD Monitors with Bezel Correction to align the image seamlessly.

Features:

  • Input resolution settings from PC -VGA, XGA (1024 x 768), SXGA (1280 x 1024), UXGA (1600 x 1200), WUXGA (1920 x 1200);
  • Input from Digital Player- 480p up to Full HD 1080p (1920 x 1080);
  • Output Resolutions from 480p to 1080p Deep Color 8/10/12 bit source;
  • Audio Supports LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/Dolby TruHD";
  • DTS-HD;
  • Fine tuning and adjustments of contrast, brightness, Saturation and hue;
  • Preset up to 4 favorite layout options;
  • Auto EDID detect from the source;
  • Bezel Correction support for 2x2 Videowall Mode;
  • USB for Service Mode and Firmware upgrade;
  • Connection by IR Remote, Telnet or Rs232 for user setup and configuration;
  • HDMI, HDCP and DVI Compliant;
  • Factory Reset;
  • Software  control through USB, RS-232 and Ethernet;
  • Firmware  upgradable for support of new features and technology enhancements;
  • 1U size;

Specifications:

  • HDCP COMPLIANCE: Yes
  • VIDEO BANDWIDTH: 225 MHz (6.75Gbps)
  • SUPPORTED RESOLUTIONS: Refer to section 7 on the User Guide
  • AUDIO SUPPORT: LPCM 2CH, 6CH, 8CH/AC3/DTS/Dolby Digital Plus/Dolby TruHD & DTS-HD
  • INPUT: 4 x HDMI19 Pin Female type connector, 1 x RJ45/RS-232 1xMini USB service only
  • OUTPUT: 4 x HDMI 19 Pin Female type connector
  • USB CONNECTOR: Type A Mini USB
  • RJ45 CONNECTOR: WE/SS 8P8C with 2 LED indicators
  • SWITCHING SPEED: ±8 kV (air-gap discharge) ±4 kV (contact discharge)
  • ESD PROTECTION: 4.85 lbs
  • DIMENSIONS (L X W X H): 17.24” x 9.8” x 1.8”
  • POWER SUPPLY: 12V/3A DC (US/EU standards, CE/FCC/UL certified)

UPC: 606825934744

AVShop.ca is a Canadian authorized Avenview retailer.

Reviews: Avenview HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support

There are currently no product reviews.


Warranty: Avenview HDMI 4x4 Matrix Switcher with 2x2 Videowall and Audio Support

AVShop.ca Warranty:

30 Days

Manufacturer's Warranty:

For a period of three years from the date of purchase, if a product is determined to be defective, Avenview will repair or replace the product, at its option, at no charge. After this warranty period, you must pay for all labor charges.

In addition, Avenview will supply, at no charge, new or rebuilt replacements in exchange for defective parts for a period of three years. After the warranty period, you must pay for all parts costs.
Avenview's warranty covers products that have been deemed defective and do no work properly. However, some actions - particularly unauthorized use - will result in this warranty becoming void. Additionally, circumstances under which the malfunctions occur must fall under certain conditions. The instances that are not covered by the warranty are constituted by - but are not limited to - the following:

  • Cosmetic damage
  • Damage from acts of God, accident, misuse, abuse or negligence
  • Modification of or to any part of the product
  • Improper installation
  • Loss of use of the product or wasted programming charges due to product malfunction
  • Damage due to improper operation or maintenance
  • Connection of the product to improper voltage supply
  • Attempted repair by anyone other than a facility authorized by Avenview to service the product.
