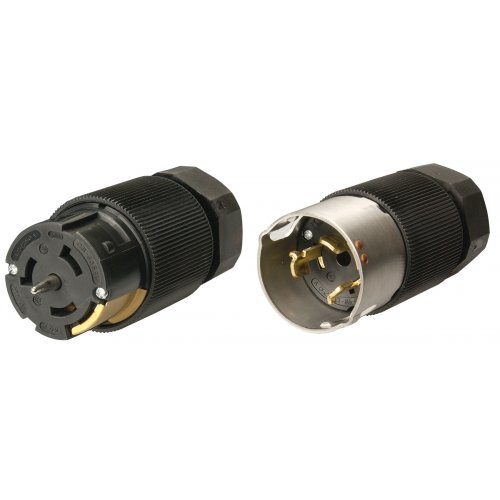

Hubbell California Twist Combo CS6364 & CS6365 Plugs

CS6364&CS6365

Hubbell California Twist Combo CS6364 & CS6365 Plugs
Hubbell California Twist Combo CS6364 & CS6365 Plugs
Hubbell California Twist Combo CS6364 & CS6365 Plugs
  • Shipping Charges Apply
  • Not yet reviewed




Package Includes:

1 x Hubbell CS-6364 Female California Twist 3p4w 50a Connector      (Model: CS6364L)
In Stock - Ship or Pick-up
1 x Hubbell CS-6365 Male California Twist 3p4w 50a Distribution Connector      (Model: CS6365L)
In Stock - Ship or Pick-up

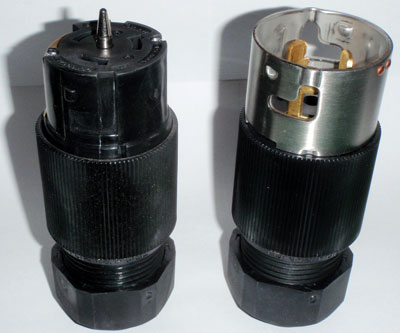

Hubbell California Twist Combo CS6364 & CS6365 Plugs

WOW Two connectors for less then the price of one!!! Hottest deal ANYWHERE - Guaranteed!!



You get a CS6364 AND CS6365 for one low price - WOW!!



Hubbell CS6365L 50A Twist-Lock Plug
This plug (male) is the same as the CS6365C only with an all black custom stress relief. This was custom designed for 50A power distributions in the event production world.

Hubbell's Wiring Devices division offers a wide array of electrical and electronic wiring devices, wire management systems, occupancy sensors, lighting controls and specialized wiring products for the marine and healthcare markets.

3P4W, 50A 125/250V, Nylon Housing, Rynite Interior.

Hubbell CS6365C 50A Twist-Lock Plug Features:
• Product Type: Twist-Lock Devices
• Product Item:  Plug
•Wiring Scheme:  3 Pole, 4 Wire Grounding
•Amperage:  50A
•Voltage:  125/250V AC
•Item Style:  Standard
•Device Color:  Black/White
•Cord Dia.:  .750"-1.125" (19.1-29.2)
•Blade Holder Material:  Glass Reinforced PET
•Terminal Retainer Material:  Glass Reinforced PET
•Housing Material:  Black Supertough Nylon
•Blade Material:  Brass
•Terminal Clamp Material:  Bronze box terminal
•Terminal Screw Material:  Stainless Steel
•Cord Clamp Screw Material:  302/304 Stainless Steel
•Body Holding Screw Material:  302/304 Stainless Steel
•Ratings:  Molded into face for all devices and stamped into stainless steel shroud on plug devices.
•Catalog No.: Molded into face for plug and connector bodies and stamped into stainless steel shroud on plug devices.
•Dielectric Voltage Withstand:  2,000V minimum
•Current Interrupting:  Certified for current interrupting at full rated current.
•Temperature Rise:  30 C maximum after 50 cycles at 150% rated current.
•Cord Accommodation:  Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
•Terminal Accommodation:  #10 AWG min - #6 AWG max.
•Terminal Identification:  Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
•Flammability:  UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
•Operating Temperatures:  Maximum Continuous 75 C Minimum -40 C (w/o impact)
•Moisture Resistance:  IP20
•Safety-Shroud Material:  Stainless Steel
•Seal Material:  Neoprene
•Latches Material:  Supertough nylon
•Box Terminal Material:  Copper
•Front & Rear Housing Material:  Supertough nylon
•Listings:  UL/CSA
•Feature Info:  Supertough Nylon housing, Rynite interior, Stainless Steel Shroud.



Hubbell CS6364L 50A Twist-Lock Connector Body

This is virtually the same as the CS6364C only this offers a better strain relief - and is an all black plug!




Hubbell’s Wiring Devices division offers a wide array of electrical and electronic wiring devices, wire management systems, occupancy sensors, lighting controls and specialized wiring products for the marine and healthcare markets.

3P4W, 50A 125/250V, Nylon Housing, Rynite Interior.

Hubbell CS6364C 50A Twist-Lock Connector Body Features:
• Product Type: Twist-Lock Devices
• Product Item: Connector Body
• Wiring Scheme: 3 Pole, 4 Wire Grounding
• Amperage: 50A
• Voltage: 125/250V AC
• Item Style: Standard
• Device Color: Black/White
• Cord Dia.: .750"-1.125" (19.1-29.2)
• Contact Nose Material: Black Nylon
• Terminal Retainer Material: Glass Reinforced PET
• Housing Material: Black Supertough Nylon
• Terminal Screw Material: Steel pressure screw- zinc plate
• Ground Screw Material: Steel pressure screw- zinc plate
• Cord Clamp Screw Material: 302/304 Stainless Steel
• Body Contact Carrier Material: Black Nylon
• Contact Spring Material: .040" Brass
• Spring Binding Plate Material: .100" Brass
• Ground Contact Material: Brass
• Ratings: Molded into face
• Dielectric Voltage Withstand: 2,000V minimum
• Current Interrupting: Certified for current interrupting at full rated current.
• Temperature Rise: 30 C maximum after 50 cycles at 150% rated current.
• Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
• Terminal Accommodation: #10AWG min -#6 AWG max.
• Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
• Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
• Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
• Moisture Resistance: IP20
• Seal Material: Neoprene
• Assembly Material: 302/304 Stainless Steel
• Latches Material: Supertough nylon (white)
• Box Terminal Material: Copper
• Contact Holder Material: Rynite (black)
• Front & Rear Housing Material: Supertough nylon (black)
• Listings: UL/CSA
• Feature Info: Supertough Nylon cover, Rynite® interior.


Hubbell CS-6364 Female California Twist 3p4w 50a Connector


Hubbell CS6364L 50A Twist-Lock Connector Body

This is virtually the same as the CS6364C only this offers a better strain relief - and is an all black plug!


Hubbell’s Wiring Devices division offers a wide array of electrical and electronic wiring devices, wire management systems, occupancy sensors, lighting controls and specialized wiring products for the marine and healthcare markets.

3P4W, 50A 125/250V, Nylon Housing, Rynite Interior.

Hubbell CS6364C 50A Twist-Lock Connector Body Features:
• Product Type: Twist-Lock Devices
• Product Item: Connector Body
• Wiring Scheme: 3 Pole, 4 Wire Grounding
• Amperage: 50A
• Voltage: 125/250V AC
• Item Style: Standard
• Device Color: Black/White
• Cord Dia.: .750"-1.125" (19.1-29.2)
• Contact Nose Material: Black Nylon
• Terminal Retainer Material: Glass Reinforced PET
• Housing Material: Black Supertough Nylon
• Terminal Screw Material: Steel pressure screw- zinc plate
• Ground Screw Material: Steel pressure screw- zinc plate
• Cord Clamp Screw Material: 302/304 Stainless Steel
• Body Contact Carrier Material: Black Nylon
• Contact Spring Material: .040" Brass
• Spring Binding Plate Material: .100" Brass
• Ground Contact Material: Brass
• Ratings: Molded into face
• Dielectric Voltage Withstand: 2,000V minimum
• Current Interrupting: Certified for current interrupting at full rated current.
• Temperature Rise: 30 C maximum after 50 cycles at 150% rated current.
• Cord Accommodation: Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
• Terminal Accommodation: #10AWG min -#6 AWG max.
• Terminal Identification: Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
• Flammability: UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
• Operating Temperatures: Maximum Continuous 75 C Minimum -40 C (w/o impact)
• Moisture Resistance: IP20
• Seal Material: Neoprene
• Assembly Material: 302/304 Stainless Steel
• Latches Material: Supertough nylon (white)
• Box Terminal Material: Copper
• Contact Holder Material: Rynite (black)
• Front & Rear Housing Material: Supertough nylon (black)
• Listings: UL/CSA
• Feature Info: Supertough Nylon cover, Rynite® interior.



Product Details and Features
  • Manufacturer and Model: Hubbell CS6364

Hubbell CS-6365 Male California Twist 3p4w 50a Distribution Connector


Hubbell CS6365L 50A Twist-Lock Plug


This plug (male) is the same as the CS6365C only with an all black custom stress relief. This was custom designed for 50A power distributions in the event production world.

Hubbell's Wiring Devices division offers a wide array of electrical and electronic wiring devices, wire management systems, occupancy sensors, lighting controls and specialized wiring products for the marine and healthcare markets.

3P4W, 50A 125/250V, Nylon Housing, Rynite Interior.

Hubbell CS6365C 50A Twist-Lock Plug Features:
• Product Type: Twist-Lock Devices
• Product Item:  Plug
•Wiring Scheme:  3 Pole, 4 Wire Grounding
•Amperage:  50A
•Voltage:  125/250V AC
•Item Style:  Standard
•Device Color:  Black/White
•Cord Dia.:  .750"-1.125" (19.1-29.2)
•Blade Holder Material:  Glass Reinforced PET
•Terminal Retainer Material:  Glass Reinforced PET
•Housing Material:  Black Supertough Nylon
•Blade Material:  Brass
•Terminal Clamp Material:  Bronze box terminal
•Terminal Screw Material:  Stainless Steel
•Cord Clamp Screw Material:  302/304 Stainless Steel
•Body Holding Screw Material:  302/304 Stainless Steel
•Ratings:  Molded into face for all devices and stamped into stainless steel shroud on plug devices.
•Catalog No.: Molded into face for plug and connector bodies and stamped into stainless steel shroud on plug devices.
•Dielectric Voltage Withstand:  2,000V minimum
•Current Interrupting:  Certified for current interrupting at full rated current.
•Temperature Rise:  30 C maximum after 50 cycles at 150% rated current.
•Cord Accommodation:  Round portable service cords of diameters commensurate with the device rating as defined in UL Standard 62, CSA C22.2 No. 49.
•Terminal Accommodation:  #10 AWG min - #6 AWG max.
•Terminal Identification:  Terminals identified in accordance with UL 498 (X, Y, Z, White, Green)
•Flammability:  UL 94 VO for Receptacles and Inlets. HB or better for Plugs and Connectors.
•Operating Temperatures:  Maximum Continuous 75 C Minimum -40 C (w/o impact)
•Moisture Resistance:  IP20
•Safety-Shroud Material:  Stainless Steel
•Seal Material:  Neoprene
•Latches Material:  Supertough nylon
•Box Terminal Material:  Copper
•Front & Rear Housing Material:  Supertough nylon
•Listings:  UL/CSA
•Feature Info:  Supertough Nylon housing, Rynite interior, Stainless Steel Shroud.

AVShop.ca is a Canadian authorized Hubbell retailer.
